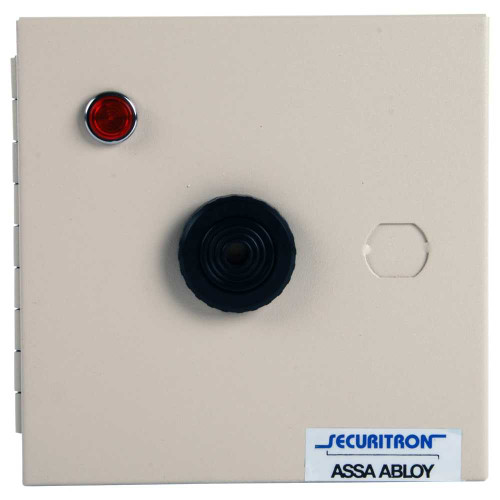

Securitron BA-DPA-12 Door Propped Alarm 12 VDC 3 5 Amp SPDT Outputs Piezo Sounder with Enclosure

Securitron

Write a Review
SKU:
BA-DPA-12
$216.46
Securitron BA-DPA-12 Door Propped Alarm 12 VDC 3 5 Amp SPDT Outputs Piezo Sounder with Enclosure
$216.46

Descriptions

The DPA complements door position/door state detection with timed logic and relays that provide escalating alerts when a door is held, propped or unsecure after a defined time period. This unit promotes safety and loss prevention at ancillary exits for healthcare, commercial and retail facilities, and dorms. Multi-functional control timer provides relay action for alarms and alerts. Monitors whether a door remains open after a defined time frame. Includes three 5 Amp SPDT outputs providing local and remote signaling. Digital time settings from 30 to 240 seconds. Detects attempts to tamper with lock or door status. Multiple time ranges for escalating alerts. Bypass mode for valid access/egress needs. Comes with Piezo sounder and LED. MagnaCare Lifetime Replacement No Fault Warranty. Metal box with hinged cover included.
TypeTitleURL
catalog2021 Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/securitron/catalog/ASSA_ABLOY_ESH_Catalog.pdf
installation-instructionsDPA-12, DPA-24 Installation and Operating Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/DPA-12_DPA-24_IO_500-15700_20C.pdf
price-book2023 Securitron Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/securitron/pricebooks/SEC_pricebook_4-2023.pdf

Specifications

Brand:
Securitron
Application:
Designed to Detect and Deter a Door from being Left Propped Open
Specifications Bullet 8:
UL 294 Listed
Country Of Origin:
USA
Door Range (Thickness):
-
Specifications Bullet 3:
Includes Enclosure, Piezo Sounder
Specifications Bullet 1:
Door Prop Alarmed Timer Module with Enclosure
Specifications Bullet 2:
Designed to Detect and Deter a Door from being Left Propped Open
Includes:
Enclosure, Piezo Sounder
Specifications Bullet 5:
5A SPDT Relay
Series:
Securitron Switches, Relays, Timers and Pushbuttons
Current:
100mA @ 12 VDC Draw
Contacts:
5A SPDT Relay
Dimensions:
5-1/4" x 5-1/4" x 2-1/2"
Voltage:
12 VDC Voltage
Specifications Bullet 4:
5-1/4" x 5-1/4" x 2-1/2" Unit Dimension
Specifications Bullet 7:
12 VDC Voltage
Product Warranty:
Lifetime Warranty
Specifications Bullet 6:
100mA @ 12 VDC Draw
Type:
Sensors, Switches, Relays, Timers
Parent Manufacturer:
Assa Abloy
Certification:
UL 294 Listed
Specifications Bullet 9:
Lifetime Warranty
Manufacturer:
Securitron
Uid:
SEC100BADPA12
Url Title:
ba-dpa-12
Title:
BA-DPA-12 Securitron Monitoring Stations
Sub Type:
Monitoring Stations
Last Modified:
2024-03-02T05:12:03+00:00
Last Pricing:
2023-04-14T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
310
Avg Lead Time:
24
Finish:
Gray
Finish Family:
Gray
Finish Description:
Applied
Popularity:
3
Pack Weight:
2.05
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
Lifetime
Fire Rated:
No
Unit Of Measure:
Each
Base Material:
Aluminum / Steel
Vendor:
Assa Abloy

Warranty Information

Lifetime Warranty
