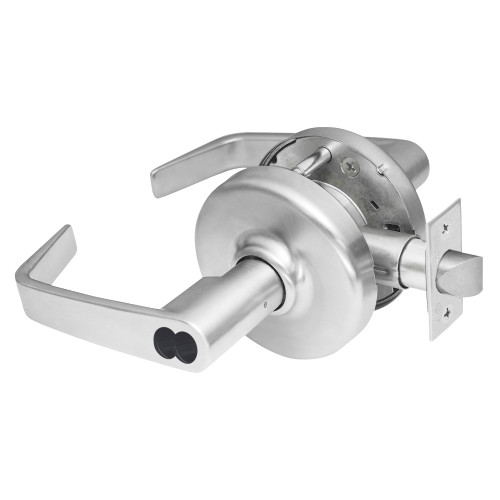

  • Corbin Russwin CL3161 NZD 626 M08 Grade 1 Entry/Office Cylindrical Lock Newport Lever D Rose SFIC Less Core Satin Chrome Finish Non-handed

Corbin Russwin CL3161 NZD 626 M08 Grade 1 Entry/Office Cylindrical Lock Newport Lever D Rose SFIC Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3161 NZD 626 M08
$636.52
Corbin Russwin CL3161 NZD 626 M08 Grade 1 Entry/Office Cylindrical Lock Newport Lever D Rose SFIC Less Core Satin Chrome Finish Non-handed
UPC:
840067629789
$636.52

Descriptions

The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3100 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3100_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3100 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Corbin_Russwin_CL3100_Series_Installation_Instructions.pdf
Video: CL3100 Series Cylindrical Lock Installationhttps://youtu.be/mrbX3uF49GM
literatureCL3100 Series Vandal Resistant Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/123.1_ASSA_ABLOY_EPD_Corbin_Russwin_CL_3100_Lock.pdf
parts-manualCL3100 Series Lever Lockset Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/corbin/partsmanual/Corbin_Russwin_CL3100_Series_Lever_Lockset_Parts_Manual.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Strike Number:
217L13
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Rose/Escutcheon:
Rose
UOM:
1
Door Handing:
Non-handed
Rose/Escutcheon Dimensions (in):
3-1/2"
Product Warranty:
10 Year Limited Warranty
Keyway:
Less Core
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Latch Bore Diameter (in):
1"
Specifications Bullet 8:
3-1/2" D Rose
Lever/Knob/Pull:
Lever
Grade:
Grade 1
Specifications Bullet 3:
SFIC Housing Less Core
Box Weight (lbs):
4.3 lbs
Latch Dimensions:
1-1/8" x 2-1/4"
Maximum Door Thickness (in):
2"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Latch Number:
780F85
Specifications Bullet 2:
Newport Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Function:
Office
Specifications Bullet 7:
2-7/8" Projection
Latch Description:
Dead Latch
Latch Throw (in):
1/2"
Rose/Escutcheon Design:
D
ADA:
Yes
Specifications Bullet 12:
10 Year Limited Warranty
Minimum Door Thickness (in):
1-3/4"
Projection (in):
2-7/8"
Lever/Knob/Pull Design:
Newport
Door Range (Thickness):
1-3/4" - 2"
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Country Of Origin:
United States
Manufacturer:
Corbin Russwin
Selling Quantity:
1
Commercial Residential:
Commercial
Includes Cylinder(s)?:
No
Finish Description:
Satin Chrome
Strike Dimensions:
1-1/4" x 4-7/8"
Can Be Keyed:
Yes
Box Width (in):
7-1/2"
Box Depth (in):
10"
Finish:
626/US26D
Electronic:
No
Bore Hole Diameter (in):
2-1/8"
Fire Rated:
3 Hours {A}
Cylinder Type:
SFIC Housing
Box Height (in):
4-1/2"
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Parent Manufacturer:
Assa Abloy
Strike Description:
ASA Strike
Base Material:
Brass Bronze
Series:
CL3100 Series
UPC:
840067629789
Backset (in):
2-3/4"
Specifications Bullet 4:
2-3/4" Backset
Uid:
COR300CL3161NZD626M08
Url Title:
cl3161-nzd-626-m08
Title:
Corbin Russwin CL3161 NZD 626 M08 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Series:
CL3100 Series Grade 1 Cylindrical Lever Locks
Last Modified:
2023-02-26T06:19:31+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
896
Avg Lead Time:
16
Finish Family:
Matte Silver
Popularity:
4
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F82A
Limited Warranty:
10 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Base Material:
Brass, Bronze
Vendor:
ASSA ABLOY

Warranty Information

10 Year Limited Warranty
