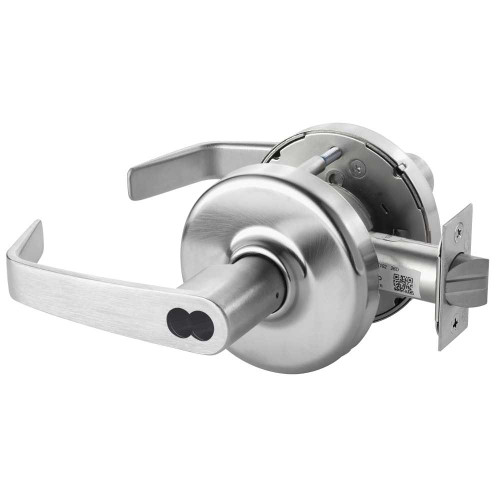

Corbin Russwin CL3355 NZD 626 CL7 Grade 1 Classroom Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3355 NZD 626 CL7
$825.62
Corbin Russwin CL3355 NZD 626 CL7 Grade 1 Classroom Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed
UPC:
840067630792
$825.62

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Lever/Knob/Pull:
Lever
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Box Weight (lbs):
4.8 lbs
ADA:
Yes
Can Be Keyed:
Yes
Finish:
626/US26D
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Commercial Residential:
Commercial
Door Range (Thickness):
1-3/4" - 2"
Specifications Bullet 3:
LFIC Housing Less 7-Pin Core
Bore Hole Diameter (in):
2-1/8"
Latch Bore Diameter (in):
1"
Cylinder Type:
LFIC Housing
Box Width (in):
7-1/2"
Strike Number:
217L13
Latch Dimensions:
1-1/8" x 2-1/4"
Electronic:
No
Function:
Classroom
Specifications Bullet 2:
Newport Lever
Fire Rated:
3 Hours {A}
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Door Handing:
Non-handed
Box Height (in):
4-1/2"
Manufacturer:
Corbin Russwin
Specifications Bullet 12:
7 Year Limited Warranty
Parent Manufacturer:
Assa Abloy
Box Depth (in):
10"
Specifications Bullet 8:
3-1/2" D Rose
Specifications Bullet 4:
2-3/4" Backset
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Product Warranty:
7 Year Limited Warranty
Base Material:
Brass, Bronze
Latch Description:
Dead Latch
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Latch Number:
586F17
Keyway:
Less 7-Pin Core
Selling Quantity:
1
Specifications Bullet 7:
2-13/16" Projection
Finish Description:
Satin Chrome
Latch Throw (in):
1/2"
Projection (in):
2-13/16"
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
UPC:
840067630792
Includes Cylinder(s)?:
No
Specifications Bullet 1:
Grade 1 Classroom Function Cylindrical Lockset
Backset (in):
2-3/4"
Maximum Door Thickness (in):
2"
Rose/Escutcheon Dimensions (in):
3-1/2"
Strike Description:
ASA Strike
Grade:
Grade 1
Lever/Knob/Pull Design:
Newport
Minimum Door Thickness (in):
1-3/4"
UOM:
1
Country of Origin:
United States
Rose/Escutcheon Design:
D
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon:
Rose

Warranty Information

7 Year Limited Warranty
