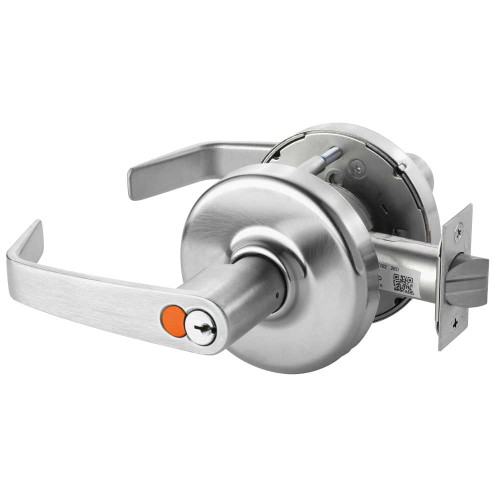

Corbin Russwin CL3357 NZD 626 Grade 1 Storeroom/Closet Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-Handed

Corbin Russwin

Write a Review
SKU:
CL3357 NZD 626
$556.88
Corbin Russwin CL3357 NZD 626 Grade 1 Storeroom/Closet Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-Handed
UPC:
840067630907
$556.88

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Electronic:
No
Door Handing:
Non-handed
Lever/Knob/Pull Design:
Newport
Specifications Bullet 7:
2-13/16" Projection
Keyway:
L4 Keyway
Grade:
Grade 1
Specifications Bullet 3:
Conventional L4 Keyway
Strike Number:
217L13
Specifications Bullet 8:
3-1/2" D Rose
Backset (in):
2-3/4"
Box Depth (in):
10"
Projection (in):
2-13/16"
Finish Description:
Satin Chrome
Door Range (Thickness):
1-3/4" - 2"
Bore Hole Diameter (in):
2-1/8"
Can Be Keyed:
Yes
Includes Cylinder(s)?:
Yes
Strike Description:
ASA Strike
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Specifications Bullet 2:
Newport Lever
Latch Dimensions:
1-1/8" x 2-1/4"
Base Material:
Brass, Bronze
Function:
Storeroom
Latch Throw (in):
1/2"
Box Height (in):
4-1/2"
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Cylinder Type:
Conventional
Country Of Origin:
United States
Latch Bore Diameter (in):
1"
Latch Description:
Dead Latch
Box Width (in):
7-1/2"
ADA:
Yes
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Fire Rated:
3 Hours {A}
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Box Weight (lbs):
4.8 lbs
Product Warranty:
7 Year Limited Warranty
Commercial Residential:
Commercial
Latch Number:
586F17
Lever/Knob/Pull:
Lever
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
2"
Manufacturer:
Corbin Russwin
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Finish:
626/US26D
UPC:
840067630907
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon Design:
D
Parent Manufacturer:
Assa Abloy
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 12:
7 Year Limited Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Dimensions (in):
3-1/2"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Series:
CL3300 Series
Selling Quantity:
1
UOM:
1
Uid:
COR300CL3357NZD626
Url Title:
cl3357-nzd-626
Title:
Corbin Russwin CL3357 NZD 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Last Modified:
2023-02-28T05:35:22+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
823
Avg Lead Time:
18
Finish Family:
Matte Silver
Popularity:
2
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F86
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
