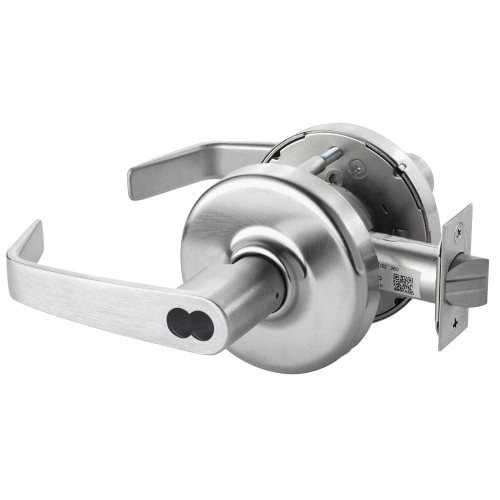

Corbin Russwin CL3359 NZD 626 LC Grade 1 Barrier Free Storeroom Cylindrical Lock Newport Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3359 NZD 626 LC
$486.72
UPC:
840067631065
$486.72

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Door Handing:
Non-handed
Commercial Residential:
Commercial
Function:
Storeroom
Can Be Keyed:
Yes
Box Height (in):
4-1/2"
Country Of Origin:
United States
Latch Description:
Dead Latch
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Parent Manufacturer:
Assa Abloy
Specifications Bullet 3:
Conventional Less Core
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Specifications Bullet 4:
Barrier Free
Specifications Bullet 10:
For Doors 1-3/4" - 2" Thick
Backset (in):
2-3/4"
Box Depth (in):
10"
Cylinder Type:
Conventional
Lever/Knob/Pull:
Lever
Latch Dimensions:
1-1/8" x 2-1/4"
Rose/Escutcheon:
Rose
ADA:
Yes
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Box Weight (lbs):
4.8 lbs
Latch Bore Diameter (in):
1"
Fire Rated:
3 Hours {A}
Specifications Bullet 7:
1-1/4" x 4-7/8" ASA Strike
Base Material:
Brass, Bronze
Latch Throw (in):
1/2"
Box Width (in):
7-1/2"
Includes Cylinder(s)?:
No
Bore Hole Diameter (in):
2-1/8"
Manufacturer:
Corbin Russwin
Specifications Bullet 2:
Newport Lever
Lever/Knob/Pull Design:
Newport
Keyway:
Less Core
Finish Description:
Satin Chrome
Specifications Bullet 5:
2-3/4" Backset
Grade:
Grade 1
Specifications Bullet 13:
7 Year Limited Warranty
Specifications Bullet 11:
2-1/8" Bore Hole Diameter
Product Warranty:
7 Year Limited Warranty
Projection (in):
2-13/16"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 8:
2-13/16" Projection
Maximum Door Thickness (in):
2"
Electronic:
No
Rose/Escutcheon Design:
D
Specifications Bullet 12:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
UOM:
1
Finish:
626/US26D
Specifications Bullet 9:
3-1/2" D Rose
Option 1:
Barrier Free
Door Range (Thickness):
1-3/4" - 2"
Latch Number:
586F17
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-1/2"
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
217L13
Selling Quantity:
1
Specifications Bullet 6:
1-1/8" x 2-1/4" Dead Latch
UPC:
840067631065
Uid:
COR300CL3359NZD626LC
Url Title:
cl3359-nzd-626-lc
Title:
Corbin Russwin CL3359 NZD 626 LC Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T09:49:18+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
719
Avg Lead Time:
14
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
