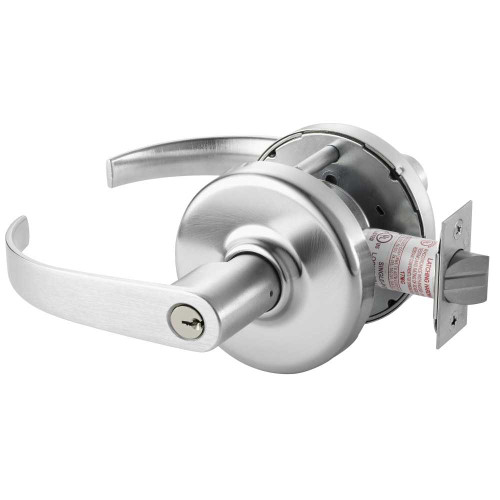

Corbin Russwin CL3359 PZD 626 M08 Grade 1 Barrier Free Storeroom Cylindrical Lock Princeton Lever SFIC Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3359 PZD 626 M08
$556.88
Corbin Russwin CL3359 PZD 626 M08 Grade 1 Barrier Free Storeroom Cylindrical Lock Princeton Lever SFIC Less Core Satin Chrome Finish Non-handed
UPC:
840067631126
$556.88

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Latch Bore Diameter (in):
1"
Bore Hole Diameter (in):
2-1/8"
Latch Description:
Dead Latch
Specifications Bullet 8:
2-13/16" Projection
Box Weight (lbs):
4.8 lbs
Specifications Bullet 7:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 11:
2-1/8" Bore Hole Diameter
Keyway:
Less Core
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
Option 1:
Barrier Free
Specifications Bullet 4:
Barrier Free
Box Depth (in):
10"
Includes Cylinder(s)?:
No
Specifications Bullet 6:
1-1/8" x 2-1/4" Dead Latch
ADA:
Yes
Latch Throw (in):
1/2"
Box Width (in):
7-1/2"
Finish Description:
Satin Chrome
Box Height (in):
4-1/2"
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 9:
3-1/2" D Rose
Grade:
Grade 1
Specifications Bullet 2:
Princeton Lever
Commercial Residential:
Commercial
Door Handing:
Non-handed
Base Material:
Brass, Bronze
Specifications Bullet 3:
SFIC Housing Less Core
Specifications Bullet 5:
2-3/4" Backset
Door Range (Thickness):
1-3/4" - 2"
Lever/Knob/Pull Design:
Princeton
Specifications Bullet 12:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Electronic:
No
Finish:
626/US26D
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon Dimensions (in):
3-1/2"
Rose/Escutcheon:
Rose
Can Be Keyed:
Yes
Cylinder Type:
SFIC Housing
Country Of Origin:
United States
Maximum Door Thickness (in):
2"
Function:
Storeroom
Parent Manufacturer:
Assa Abloy
Lever/Knob/Pull:
Lever
Selling Quantity:
1
Fire Rated:
3 Hours {A}
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
D
Product Warranty:
7 Year Limited Warranty
Latch Number:
586F17
Manufacturer:
Corbin Russwin
Projection (in):
2-13/16"
UPC:
840067631126
Specifications Bullet 10:
For Doors 1-3/4" - 2" Thick
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
UOM:
1
Series:
CL3300 Series
Backset (in):
2-3/4"
Specifications Bullet 13:
7 Year Limited Warranty
Strike Description:
ASA Strike
Strike Number:
217L13
Uid:
COR300CL3359PZD626M08
Url Title:
cl3359-pzd-626-m08
Title:
Corbin Russwin CL3359 PZD 626 M08 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Last Modified:
2023-02-13T09:49:21+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
823
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
