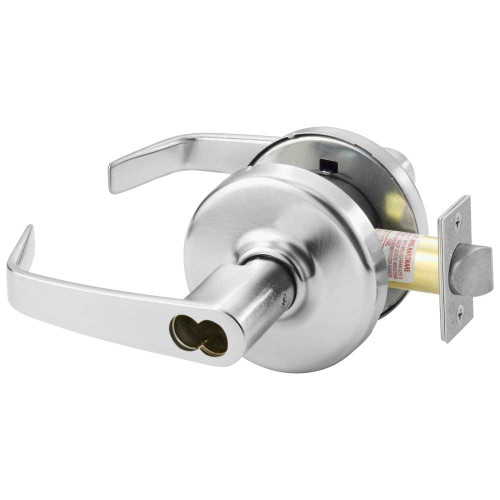

Corbin Russwin CL3361 NZD 626 CL7 Grade 1 Entry/Office Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3361 NZD 626 CL7
$568.26
Corbin Russwin CL3361 NZD 626 CL7 Grade 1 Entry/Office Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed
UPC:
840067631188
$568.26

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Fire Rated:
3 Hours {A}
Parent Manufacturer:
Assa Abloy
Latch Throw (in):
1/2"
Specifications Bullet 2:
Newport Lever
Cylinder Type:
LFIC Housing
Latch Number:
586F17
Box Height (in):
4-1/2"
Lever/Knob/Pull:
Lever
Projection (in):
2-13/16"
Selling Quantity:
1
Electronic:
No
Latch Bore Diameter (in):
1"
Grade:
Grade 1
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Strike Description:
ASA Strike
Manufacturer:
Corbin Russwin
ADA:
Yes
Commercial Residential:
Commercial
Lever/Knob/Pull Design:
Newport
Latch Description:
Dead Latch
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Finish:
626/US26D
Product Warranty:
7 Year Limited Warranty
Keyway:
Less 7-Pin Core
Box Depth (in):
10"
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Backset (in):
2-3/4"
Box Weight (lbs):
4.8 lbs
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Includes Cylinder(s)?:
No
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Door Handing:
Non-handed
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Finish Description:
Satin Chrome
Country Of Origin:
United States
Specifications Bullet 3:
LFIC Housing Less 7-Pin Core
Box Width (in):
7-1/2"
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 4:
2-3/4" Backset
Latch Dimensions:
1-1/8" x 2-1/4"
Can Be Keyed:
Yes
Maximum Door Thickness (in):
2"
Specifications Bullet 7:
2-13/16" Projection
Door Range (Thickness):
1-3/4" - 2"
Specifications Bullet 12:
7 Year Limited Warranty
Base Material:
Brass, Bronze
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 8:
3-1/2" D Rose
Function:
Office
Rose/Escutcheon Dimensions (in):
3-1/2"
Rose/Escutcheon:
Rose
Series:
CL3300 Series
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067631188
Rose/Escutcheon Design:
D
Strike Number:
217L13
Minimum Door Thickness (in):
1-3/4"
UOM:
1
Uid:
COR300CL3361NZD626CL7
Url Title:
cl3361-nzd-626-cl7
Title:
CL3361 NZD 626 CL7
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Last Modified:
2023-02-13T09:49:26+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
840
Avg Lead Time:
18
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F82A
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
