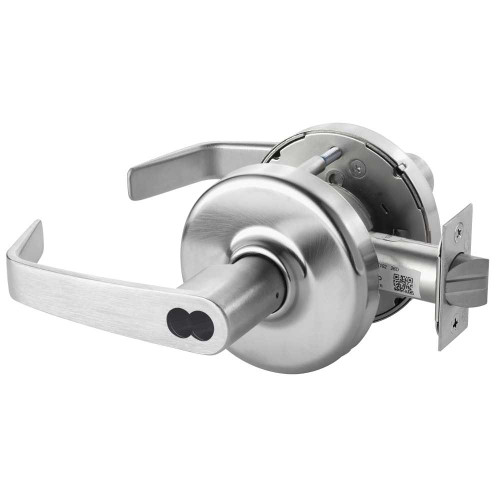

Corbin Russwin CL3361 NZD 626 Grade 1 Entry/Office Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3361 NZD 626
$568.26
Corbin Russwin CL3361 NZD 626 Grade 1 Entry/Office Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-handed
UPC:
840067631164
$568.26

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Latch Bore Diameter (in):
1"
Door Handing:
Non-handed
Fire Rated:
3 Hours {A}
Finish:
626/US26D
Grade:
Grade 1
Lever/Knob/Pull:
Lever
Specifications Bullet 8:
3-1/2" D Rose
Latch Number:
586F17
Latch Dimensions:
1-1/8" x 2-1/4"
Box Height (in):
4-1/2"
Specifications Bullet 4:
2-3/4" Backset
Includes Cylinder(s)?:
Yes
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Electronic:
No
Latch Throw (in):
1/2"
Box Depth (in):
10"
Box Width (in):
7-1/2"
Commercial Residential:
Commercial
Minimum Door Thickness (in):
1-3/4"
Latch Description:
Dead Latch
Rose/Escutcheon:
Rose
Parent Manufacturer:
Assa Abloy
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Lever/Knob/Pull Design:
Newport
Function:
Office
Specifications Bullet 12:
7 Year Limited Warranty
Base Material:
Brass, Bronze
Projection (in):
2-13/16"
Can Be Keyed:
Yes
Door Range (Thickness):
1-3/4" - 2"
Strike Number:
217L13
Backset (in):
2-3/4"
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
UPC:
840067631164
Specifications Bullet 2:
Newport Lever
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Keyway:
L4 Keyway
UOM:
1
Country Of Origin:
United States
Box Weight (lbs):
4.8 lbs
Cylinder Type:
Conventional
Specifications Bullet 7:
2-13/16" Projection
Rose/Escutcheon Design:
D
ADA:
Yes
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Selling Quantity:
1
Product Warranty:
7 Year Limited Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Description:
ASA Strike
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 3:
Conventional L4 Keyway
Maximum Door Thickness (in):
2"
Rose/Escutcheon Dimensions (in):
3-1/2"
Manufacturer:
Corbin Russwin
Finish Description:
Satin Chrome

Warranty Information

7 Year Limited Warranty
