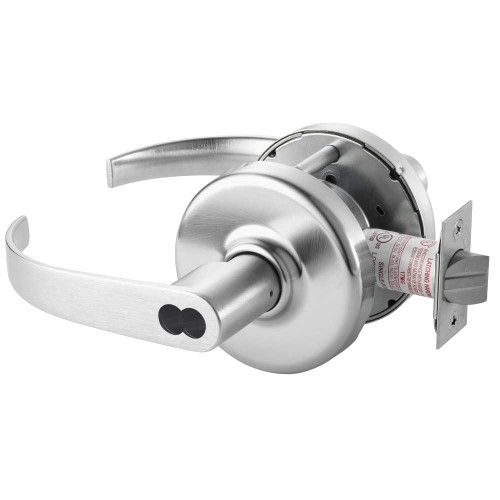

Corbin Russwin CL3361 PZD 626 Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3361 PZD 626
$568.26
UPC:
840067631218
$568.26

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Box Weight (lbs):
4.8 lbs
Strike Number:
217L13
Base Material:
Brass, Bronze
Box Width (in):
7-1/2"
Specifications Bullet 4:
2-3/4" Backset
Rose/Escutcheon:
Rose
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Function:
Office
Finish Description:
Satin Chrome
Specifications Bullet 2:
Princeton Lever
Parent Manufacturer:
Assa Abloy
Box Depth (in):
10"
Keyway:
L4 Keyway
Latch Number:
586F17
Electronic:
No
Latch Dimensions:
1-1/8" x 2-1/4"
UOM:
1
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Commercial Residential:
Commercial
Fire Rated:
3 Hours {A}
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Door Handing:
Non-handed
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Product Warranty:
7 Year Limited Warranty
Bore Hole Diameter (in):
2-1/8"
Grade:
Grade 1
Door Range (Thickness):
1-3/4" - 2"
Latch Throw (in):
1/2"
ADA:
Yes
Lever/Knob/Pull:
Lever
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Can Be Keyed:
Yes
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 12:
7 Year Limited Warranty
Projection (in):
2-13/16"
Includes Cylinder(s)?:
Yes
Latch Description:
Dead Latch
Lever/Knob/Pull Design:
Princeton
Specifications Bullet 3:
Conventional L4 Keyway
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 7:
2-13/16" Projection
Cylinder Type:
Conventional
Finish:
626/US26D
Backset (in):
2-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Box Height (in):
4-1/2"
Latch Bore Diameter (in):
1"
Maximum Door Thickness (in):
2"
Country Of Origin:
United States
Strike Description:
ASA Strike
Specifications Bullet 8:
3-1/2" D Rose
Rose/Escutcheon Dimensions (in):
3-1/2"
Selling Quantity:
1
Rose/Escutcheon Design:
D
Manufacturer:
Corbin Russwin
UPC:
840067631218
Strike Dimensions:
1-1/4" x 4-7/8"

Warranty Information

7 Year Limited Warranty
