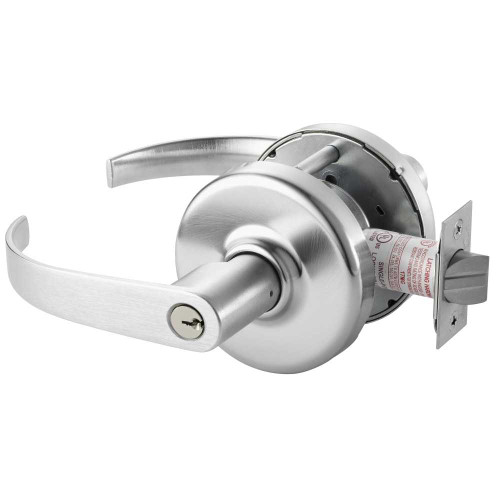

  • Corbin Russwin CL3361 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin CL3361 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3361 PZD 626 LC
$498.09
Corbin Russwin CL3361 PZD 626 LC Grade 1 Entry/Office Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed
UPC:
840067631249
$498.09

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Specifications Bullet 8:
3-1/2" D Rose
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Finish:
626/US26D
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 2"
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Box Weight (lbs):
4.8 lbs
Electronic:
No
Box Depth (in):
10"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Can Be Keyed:
Yes
Backset (in):
2-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Selling Quantity:
1
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Bore Diameter (in):
1"
Function:
Office
Cylinder Type:
Conventional
Latch Number:
586F17
Projection (in):
2-13/16"
Country Of Origin:
United States
Box Height (in):
4-1/2"
Lever/Knob/Pull:
Lever
Rose/Escutcheon Design:
D
Minimum Door Thickness (in):
1-3/4"
Base Material:
Brass, Bronze
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Includes Cylinder(s)?:
No
Specifications Bullet 2:
Princeton Lever
Keyway:
Less Core
Fire Rated:
3 Hours {A}
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 1:
Grade 1 Office Function Cylindrical Lockset
Rose/Escutcheon:
Rose
Latch Description:
Dead Latch
Specifications Bullet 3:
Conventional Less Core
Maximum Door Thickness (in):
2"
Specifications Bullet 7:
2-13/16" Projection
Commercial Residential:
Commercial
Parent Manufacturer:
Assa Abloy
Grade:
Grade 1
Specifications Bullet 12:
7 Year Limited Warranty
Lever/Knob/Pull Design:
Princeton
Latch Throw (in):
1/2"
Specifications Bullet 4:
2-3/4" Backset
Box Width (in):
7-1/2"
Product Warranty:
7 Year Limited Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
ADA:
Yes
Manufacturer:
Corbin Russwin
Finish Description:
Satin Chrome
Strike Description:
ASA Strike
UOM:
1
Rose/Escutcheon Dimensions (in):
3-1/2"
Bore Hole Diameter (in):
2-1/8"
Strike Number:
217L13
UPC:
840067631249

Warranty Information

7 Year Limited Warranty
