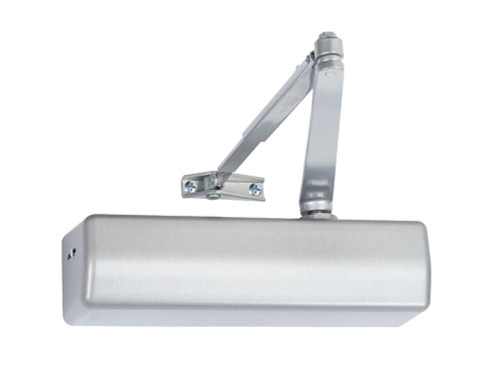

Corbin Russwin DC6210 A1 689 M54 Grade 1 Surface Door Closer Double Lever Arm Friction Hold Open Push or Pull Side Mount Size 1 to 6 Full Cover Non-Handed Aluminum Painted

Corbin Russwin

Write a Review
SKU:
DC6210 A1 689 M54
$475.97
Corbin Russwin DC6210 A1 689 M54 Grade 1 Surface Door Closer Double Lever Arm Friction Hold Open Push or Pull Side Mount Size 1 to 6 Full Cover Non-Handed Aluminum Painted
UPC:
840067639139
$475.97

Descriptions

Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire door openings
TypeTitleURL
catalogDC6000 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/aadss1004479.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
wiring-diagrams-and-instructionsDC6200, DC6400 Regular, Parallel or Top Jamb Mounthttps://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6000-152.PDF
DC6200, DC6400 x HD Regular Arm (A10)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6004-152.pdf
DC6210, DC6410 x HD Parallel Arm (A13)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6008-152.pdf
DC6210, DC6410 x HD Parallel Arm (A14)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6007-152.pdf
DC6210, DC6410 x HD Parallel Arm (A2, A4, or A5)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6001-152.pdf
DC6210, DC6410 x HD Parallel Arm (A3)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6002-152.pdf
DC6210, DC6410 x HD Spring Stop Parallel Arm (A11 or A12)https://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6003-152.pdf
DC6230, DC6430 Series - Hinge (Pull) Side Door Application DC6240, DC6440 Series - Opposite to Hinghttps://dvwi9lnoau63q.cloudfront.net/corbin/wiring-diagrams-instructions/80-9360-6009-152.pdf

Specifications

Brand:
Corbin Russwin
Finish:
689/US28
Cover Material:
Plastic
All Weather Fluid:
Yes
Latch Speed Adjustment:
Yes
ADA:
Yes
Specifications Bullet 2:
Hold Open Parallel Arm
Specifications Bullet 11:
Includes Self Drilling Screws
Degree Swing:
180 Degree Swing
Specifications Bullet 5:
Tri Mount
Specifications Bullet 4:
Size 1-6
Door Handing:
Non-handed
Certification:
ANSI/BMHA A 156.4, Grade 1 Certified
Finish Description:
Aluminum Painted
Specifications Bullet 6:
Non-handed
Base Material:
VARIES
Specifications Bullet 3:
Friction Hold-Open
Hold Open:
Yes
Electronic:
No
Interior/Exterior:
Interior/Exterior
Country of Origin:
United States
Closing Speed Adjustment:
Yes
Hold Open Type:
Friction Hold-Open
Grade:
Grade 1
Specifications Bullet 1:
Grade 1 Surface Door Closer
Maximum Door Weight (lbs):
225 lbs Maximum Door Weight
Fire Rated:
Yes
Specifications Bullet 10:
1-3/8" Piston Diameter
UOM:
1
Commercial Residential:
Commercial
Screw Pack Designation:
M54
Arm Type:
Hold Open Parallel Arm
Specifications Bullet 12:
ANSI/BMHA A 156.4, Grade 1 Certified
Body Base Material:
Cast Iron
Series:
DC6000 Series Door Closers
Size:
Size 1-6
UPC:
840067639139
Screw Pack:
Self Drilling Screws
Parent Manufacturer:
Assa Abloy
Cover Type:
Full Body Cover
Piston Diameter (in):
1-3/8"
Specifications Bullet 8:
Plastic Full Body Cover
Specifications Bullet 7:
180 Degree Swing
Type:
Door Closers and Operators
Mount:
Tri Mount
Selling Quantity:
1
Manufacturer:
Corbin Russwin
Door Range (Thickness):
-
Product Warranty:
25 Year Warranty
Specifications Bullet 13:
25 Year Warranty
Specifications Bullet 9:
Cast Iron Body
Backcheck:
Yes
Advanced Backcheck:
No
Uid:
COR300DC6210A1689M54
Url Title:
dc6210-a1-689-m54
Title:
DC6210 A1 689 M54 Corbin Russwin Surface Closers
Sub Type:
Surface Closers
Last Modified:
2023-02-28T05:26:52+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
679
Avg Lead Time:
51
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
10.1
Pack Length:
13.75
Pack Width:
7.375
Pack Height:
3.875
Pack Volume:
392.9492188
Limited Warranty:
25 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
4
Vendor:
Assa Abloy

Warranty Information

25 Year Warranty
