  • Home
  • Locksets
  • Corbin Russwin DL2213 626 CL6 Grade 2 Single Cylinder Deadbolt Corbin Russwin 6-Pin LFIC Prep Less Core Satin Chrome Finish Non-Handed

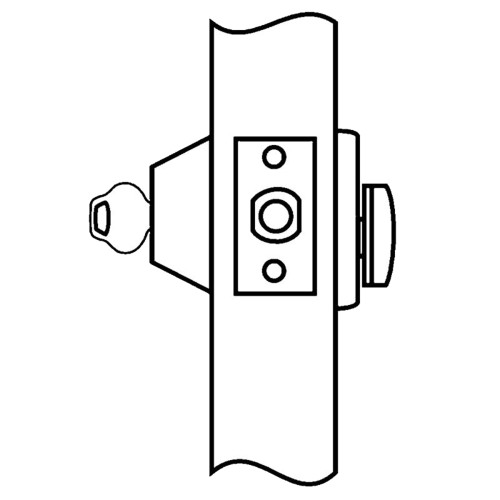

Corbin Russwin DL2213 626 CL6 Grade 2 Single Cylinder Deadbolt Corbin Russwin 6-Pin LFIC Prep Less Core Satin Chrome Finish Non-Handed

Corbin Russwin

Write a Review
SKU:
DL2213 626 CL6
$98.71
Corbin Russwin DL2213 626 CL6 Grade 2 Single Cylinder Deadbolt Corbin Russwin 6-Pin LFIC Prep Less Core Satin Chrome Finish Non-Handed
UPC:
840067638118
$98.71

Descriptions

Corbin Russwin is pleased to introduce the DL2200 and DL3200 cylindrical deadlocks. These easy to install deadlocks feature a solid steel deadbolt - with a hardened, free spinning, steel pin insert - and a 1" throw. Ideal for a variety of applications, the DL2200 is certified to 156.5 Grade 2 standards and the DL3200 is certified to 156.5 Grade 1 standards. Features Solid steel Deadbolt with a hardened, free spinning, steel pin insert and a 1" throw 1-3/4" door thickness standard; additional door thicknesses offered.
TypeTitleURL
catalogAlarm Lock Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/ALA112U-Alarm-Lock-2019.pdf
Padlocks and Deadlocks Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/45012.pdf
installation-instructionsDL2200/DL3200 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM331.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Backset (in):
2-3/4"
Base Material:
Brass or Bronze
Series:
DL2200 Series Cylindrical Deadlocks
Manufacturer:
Corbin Russwin
Parent Manufacturer:
Assa Abloy
Box Width (in):
4"
Box Height (in):
4"
Box Depth (in):
7-7/8"
Box Weight (lbs):
1.8 lbs
Bore Hole Diameter (in):
2-1/8"
Cylinder Type:
LFIC Housing
Certification:
ANSI A156.5, Grade 2, UL Listed
Can Be Keyed:
Yes
Commercial/Residential:
Commercial
Country of Origin:
Mexico
Electronic:
No
Deadbolt Throw (in):
1"
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish:
626/US26D
Door Handing:
Non-handed
Function:
Single Cylinder
Interior/Exterior:
Interior/Exterior
Includes Cylinder(s)?:
No
Finish Description:
Satin Chrome
Grade:
Grade 2
Latch Number:
781F538
Latch Description:
Square Corner
Keyway:
Less Core
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Bore Diameter (in):
1"
Specifications Bullet 5:
For Doors 1-3/4" Thick
Specifications Bullet 1:
Grade 2 Single Cylinder Deadbolt
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Specifications Bullet 3:
2-3/4" Backset
Specifications Bullet 2:
LFIC Housing Less Core
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Specifications Bullet 6:
1" Deadbolt Throw
Specifications Bullet 9:
ANSI A156.5, Grade 2, UL Listed
Specifications Bullet 10:
1 Year Warranty
Specifications Bullet 7:
1-1/8" x 2-1/4" Latch Dimension
Product Warranty:
1 Year Warranty
Selling Quantity:
1
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/4"
Number of Keys:
2
UPC:
840067638118
Strike Description:
Rectangle Strike
Strike Dimensions:
1-1/8" x 2-3/4"
Strike Number:
781F568
UOM:
1
Uid:
COR300DL2213626CL6
Url Title:
dl2213-626-cl6
Title:
DL2213 626 CL6 Corbin Russwin Deadlock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:26:52+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
142
Avg Lead Time:
13
Popularity:
3
Pack Weight:
1.8
Pack Length:
7.875
Pack Width:
4
Pack Height:
4
Pack Volume:
126
Limited Warranty:
1 Year
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each

Warranty Information

1 Year Warranty
