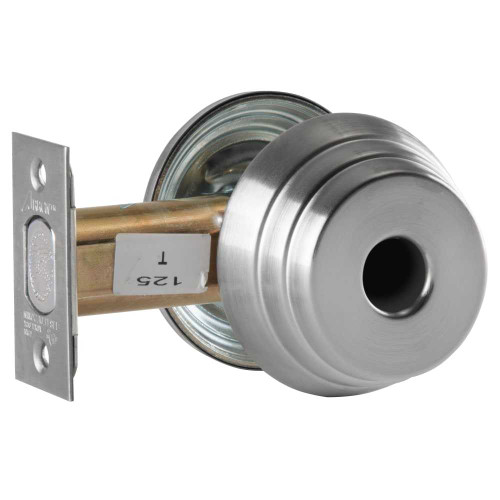

Arrow E62 26D Grade 2 Double Cylinder Deadlock Conventional Cylinder Satin Chrome Finish Field Reversible

Arrow

Write a Review
SKU:
E62 26D
$64.97
Arrow E62 26D Grade 2 Double Cylinder Deadlock Conventional Cylinder Satin Chrome Finish Field Reversible
UPC:
840067637746
$64.97

Descriptions

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
TypeTitleURL
catalog2014 Arrow Full Line Cataloghttps://dvwi9lnoau63q.cloudfront.net/arrow/catalog/ARR_catalog_2014.pdf
cut-sheetE Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/ESeries.pdf
Management Control Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/MgmtControl.pdf
Occupancy Indicator Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/OccIndicator.pdf
price-book2023 Arrow Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_4-2023.pdf
2024 Arrow Price Book (effective 3.1.2024)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_3-2024.pdf

Specifications

Brand:
Arrow
Grade:
Grade 2
Keyway:
A Keyway
Interior/Exterior:
Interior/Exterior
Latch Description:
Square Corner
Finish:
626/US26D
Box Width (in):
4"
Manufacturer:
Arrow
Specifications Bullet 6:
1" Deadbolt Throw
Deadbolt Throw (in):
1"
Electronic:
No
Specifications Bullet 2:
Conventional A Keyway
Door Handing:
Non-handed
Cylinder Type:
Conventional
Box Height (in):
3"
Specifications Bullet 3:
2-3/8" Backset
Can Be Keyed:
Yes
Certification:
ANSI A156.5, Grade 2, UL Listed
Country of Origin:
Mexico
Latch Bore Diameter (in):
1"
Finish Description:
Satin Chrome
Latch Number:
141
Specifications Bullet 1:
Grade 2 Double Cylinder Deadbolt
Box Depth (in):
4-1/2"
Specifications Bullet 5:
For Doors 1-3/8" - 1-3/4" Thick
Box Weight (lbs):
1.5 lbs
Function:
Double Cylinder
Includes Cylinder(s)?:
Yes
UOM:
1
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Specifications Bullet 9:
ANSI A156.5, Grade 2, UL Listed
Number of Keys:
2
Specifications Bullet 10:
1 Year Warranty
Commercial Residential:
Commercial
Specifications Bullet 7:
1-1/8" x 2-1/4" Latch Dimension
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Minimum Door Thickness (in):
1-3/8"
Latch Dimensions:
1-1/8" x 2-1/4"
Strike Number:
346
Number of Pins:
6
Maximum Door Thickness (in):
1-3/4"
Strike Description:
Rectangle Strike
Selling Quantity:
1
UPC:
840067637746
Series:
Arrow E Series Deadbolts
Parent Manufacturer:
Assa Abloy
Backset (in):
2-3/8"
Bore Hole Diameter (in):
2-1/8"
Product Warranty:
1 Year Warranty
Base Material:
Brass Bronze
Strike Dimensions:
1-1/8" x 2-3/4"
Uid:
ARR100E6226D
Url Title:
e62-26d
Title:
E62 26D
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:26:50+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
93
Avg Lead Time:
59
Finish Family:
Matte Silver
Popularity:
9
Pack Weight:
2
Pack Length:
4
Pack Width:
4
Pack Height:
3
Pack Volume:
48
Ansi Code:
A156.5
Limited Warranty:
1 Year
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
12
Vendor:
ASSA ABLOY

Warranty Information

1 Year Warranty
