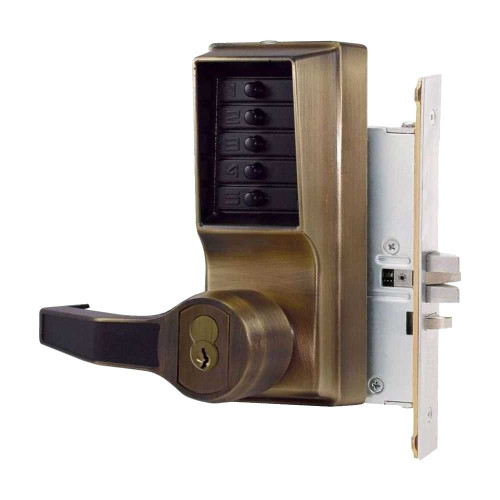

Kaba Simplex L8146B-05-41 Mortise Combination Lever Lock Key Override Passage Lockout 6/7-Pin SFIC Prep Less Core Antique Brass

Kaba Simplex

Write a Review
SKU:
L8146B-05-41
$1,100.20
Kaba Simplex L8146B-05-41 Mortise Combination Lever Lock Key Override Passage Lockout 6/7-Pin SFIC Prep Less Core Antique Brass
UPC:
840067622506
$1,100.20

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf

Specifications

Brand:
Kaba Simplex
Specifications Bullet 6:
3-13/16" Projection
Includes Cylinder(s)?:
No
Base Material:
Brass
Box Weight (lbs):
12.5 lbs
Backset (in):
2-3/4"
Latch Description:
Dead Latch
Armor Front Dimensions:
1-1/4" x 8"
Commercial/Residential:
Commercial
Pocket Dimensions:
6-5/8" x 4-1/2"
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Dimensions (in):
3-1/8" x 7-3/8"
Specifications Bullet 7:
3-1/8" x 7-3/8" Escutcheon Dimension
Specifications Bullet 5:
Entrance, Passage Function
Lever/Knob/Pull:
Lever
Specifications Bullet 2:
ADA Lever
Finish:
609/US5
Cylinder Type:
SFIC Housing
Specifications Bullet 8:
For Doors 1-3/4" - 2-1/4" Thick
Interior/Exterior:
Interior/Exterior
Function:
Entrance, Passage
Country of Origin:
Mexico
ADA:
Yes
Keyway:
Less Core
Certification:
BHMA Grade 1, UL Listed, A Label
Minimum Door Thickness (in):
1-3/4"
Box Height (in):
8"
Latch Throw (in):
3/4"
Door Range (Thickness):
1-3/4" - 2-1/4"
Manufacturer:
DormaKaba
Rose/Escutcheon:
Escutcheon
Selling Quantity:
1
Product Warranty:
3 Year Warranty
Door Handing:
Left Hand
Audit Trails:
Not Applicable
Parent Manufacturer:
DormaKaba
Specifications Bullet 9:
BHMA Grade 1, UL Listed, A Label
Box Depth (in):
11"
Trademark Term:
Simplex
Can Be Keyed:
Yes
Maximum Door Thickness (in):
2-1/4"
Type:
Integrated and Pushbutton
Technology:
PIN Access
UOM:
1
UPC:
840067622506
Specifications Bullet 10:
3 Year Warranty
Grade:
Grade 1
Electronic:
No
Specifications Bullet 1:
Grade 1 Mortise PIN Access Pushbutton Lockset
User Codes:
1
Projection (in):
3-13/16"
Series:
8100 Series
Product Height (in):
7-3/8"
Specifications Bullet 3:
SFIC Housing Less Core
Lever/Knob/Pull Design:
ADA
Product Width (in):
3-1/8"
Strike Description:
ASA Strike
Finish Description:
Antique Brass
Specifications Bullet 4:
Single Access Code
Box Width (in):
10-1/2"
Uid:
SIM100L8146B0541
Url Title:
l8146b-05-41
Title:
L8146B-05-41
Sub Type:
Mortise Locks with Keypad Trim
Series:
Simplex 8100 Series
Last Modified:
2023-02-28T05:42:16+00:00
Last Pricing:
2022-09-30T00:00:00+00:00
Msrp:
905
Avg Lead Time:
193
Finish Description:
Satin Brass Blackened Satin Relieved Clear Coated
Popularity:
3
Unit Of Measure:
Each

Warranty Information

3 Year Warranty
