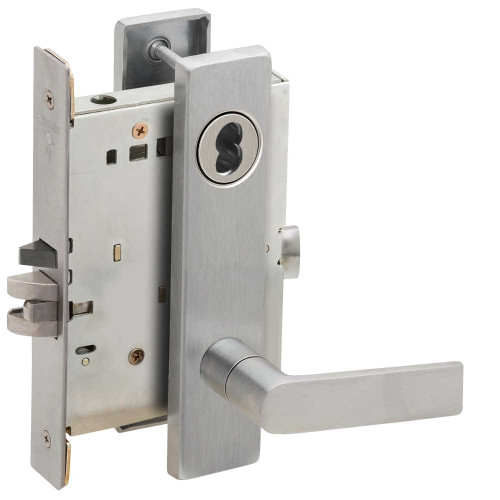

Schlage L9070J 03N 626 Grade 1 Classroom Mortise Lock Schlage FSIC Less Core 03 Lever N Escutcheon Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9070J 03N 626
$854.00
UPC:
840067643372
$854.00

Descriptions

Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Specifications Bullet 7:
2-13/16" Projection
Interior/Exterior:
Interior/Exterior
Product Warranty:
10 Year Warranty
Commercial Residential:
Commercial
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Grade:
Grade 1
Finish Description:
Satin Chrome
Cylinder Type:
Mortise LFIC Housing
Specifications Bullet 14:
10 Year Warranty
Lever/Knob/Pull Design:
3
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Door Range (Thickness):
1-3/4" - 1-3/4"
Base Material:
Brass Bronze
Rose/Escutcheon Design:
N
Specifications Bullet 4:
N Escutcheon
Latch Dimensions:
1-1/4" x 8"
Can Be Keyed:
Yes
Door Handing:
Non-handed
Rose/Escutcheon:
Escutcheon
Deadbolt Throw (in):
Not Applicable
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Latch Description:
Dead Latch
Projection (in):
2-13/16"
Fire Rated:
3 Hours {A}
Function:
Classroom
Strike Description:
ASA Strike
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Latch Throw (in):
3/4"
Rose/Escutcheon Dimensions (in):
2-1/2" x 7-7/8"
Maximum Door Thickness (in):
1-3/4"
Includes Cylinder(s)?:
No
UOM:
1
Country Of Origin:
Mexico
Keyway:
Less Core
Electronic:
No
Series:
L9000 Series Mortise Lock
Specifications Bullet 12:
For Doors 1-3/4" Thick
Selling Quantity:
1
Strike Dimensions:
1-1/4" x 4-7/8"
Minimum Door Thickness (in):
1-3/4"
Strike Number:
10-072
Lever/Knob/Pull:
Lever
Parent Manufacturer:
Allegion
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Backset (in):
2-3/4"
ADA:
Yes
Specifications Bullet 1:
Grade 1 Classroom Function Mortise Lockset
Pocket Dimensions:
6-5/8" X 4-1/2"
Specifications Bullet 8:
2-1/2" x 7-7/8" Escutcheon Dimension
Manufacturer:
Schlage
UPC:
840067643372
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 2:
03 Lever
Finish:
626
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike

Warranty Information

10 Year Warranty
