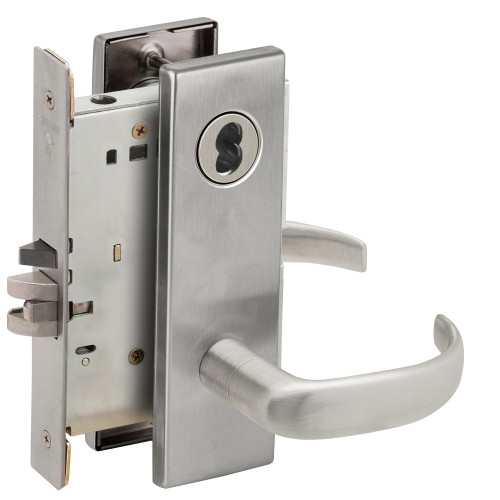

Schlage L9080J 17L 626 Grade 1 Storeroom Mortise Lock Schlage FSIC Less Core 17 Lever L Escutcheon Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9080J 17L 626
$0.00
UPC:
840067647240
$0.00

Descriptions

Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Specifications Bullet 8:
1-3/4" x 7-15/16" Escutcheon Dimension
Series:
L9000 Series Mortise Lock
Base Material:
Brass Bronze
Keyway:
Less Core
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Specifications Bullet 5:
2-3/4" Backset
Electronic:
No
Latch Description:
Dead Latch
Lever/Knob/Pull:
Lever
Deadbolt Throw (in):
Not Applicable
Grade:
Grade 1
Parent Manufacturer:
Allegion
Specifications Bullet 2:
17 Lever
ADA:
Yes
Commercial Residential:
Commercial
Function:
Storeroom
Lever/Knob/Pull Design:
17
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Backset (in):
2-3/4"
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 4:
L Escutcheon
Can Be Keyed:
Yes
Latch Throw (in):
3/4"
Cylinder Type:
Mortise LFIC Housing
Latch Dimensions:
1-1/4" x 8"
Finish Description:
Satin Chrome
Specifications Bullet 7:
3" Projection
Interior/Exterior:
Interior/Exterior
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Includes Cylinder(s)?:
No
Country Of Origin:
Mexico
Manufacturer:
Schlage
Specifications Bullet 14:
10 Year Warranty
Projection (in):
3"
Finish:
626/US26D
Pocket Dimensions:
6-5/8" X 4-1/2"
UPC:
840067647240
Fire Rated:
3 Hours {A}
Product Warranty:
10 Year Warranty
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Door Range (Thickness):
1-3/4" - 1-3/4"
Door Handing:
Non-handed
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 9:
3/4" Dead Latch
Selling Quantity:
1
Strike Number:
10-072
Rose/Escutcheon:
Escutcheon
Rose/Escutcheon Design:
L
Rose/Escutcheon Dimensions (in):
1-3/4" x 7-15/16"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Strike Description:
ASA Strike
Uid:
SCH100L9080J17L626
Url Title:
l9080j-17l-626
Title:
L9080J 17L 626 Schlage Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T12:55:40+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1242
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
6.3
Pack Length:
10.375
Pack Width:
5.375
Pack Height:
5.625
Pack Volume:
313.6816406
Ul Listing:
UL Listed
Ansi Code:
A156.13-2017 Series 1000
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
