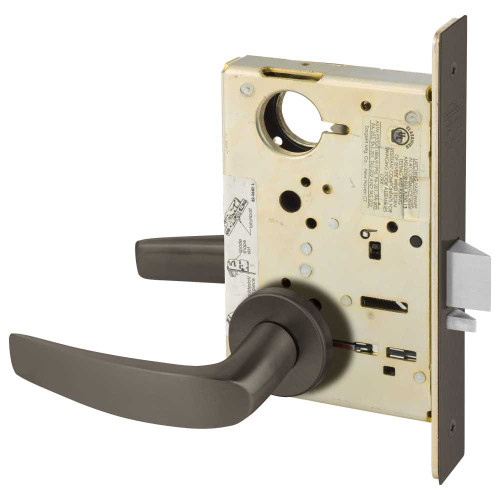

Sargent LC-8204 LNL 10B Grade 1 Storeroom or Closet Mortise Lock L - Lever LN - Rose Field Reversible Less Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed

Sargent

Write a Review
SKU:
LC-8204 LNL 10B
$810.93
Sargent LC-8204 LNL 10B Grade 1 Storeroom or Closet Mortise Lock L - Lever LN - Rose Field Reversible Less Cylinder ASA Strike Dark Oxidized Satin Bronze Oil Rubbed
$810.93

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Manufacturer:
Sargent
Series:
8200 Line Lever Mortise Locks
ADA:
Yes
Parent Manufacturer:
Assa Abloy
Armor Front Dimensions:
1-1/4" x 8"
Backset (in):
2-3/4"
Can Be Keyed:
Yes
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Base Material:
Bronze
Commercial/Residential:
Commercial
Cylinder Type:
Less Cylinder
Deadbolt Throw (in):
Not Applicable
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-3/4"
Country Of Origin:
USA
Electronic:
No
Finish:
613/US10B
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Function:
Storeroom
Fire Rated:
2 Hours {B}
Interior/Exterior:
Interior/Exterior
Keyway:
Not Applicable
Latch Description:
Dead Latch
Grade:
Grade 1
Includes Cylinder(s)?:
No
Lever/Knob/Pull:
Lever
Latch Dimensions:
1-1/4" x 8"
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
L
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
LN Rose
Specifications Bullet 2:
L Lever
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 3:
Less Cylinder
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 7:
2-3/8" Projection
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 8:
2-1/8" Rose Dimension
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 14:
10 Year Warranty
Pocket Depth (in):
6-5/8" x 4-1/2"
Product Warranty:
10 Year Warranty
Pocket Dimensions:
6-5/8" x 4-1/2"
Projection (in):
2-3/8"
Rose/Escutcheon:
Rose
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
LN
Rose/Escutcheon Dimensions (in):
2-1/8"
Selling Quantity:
1
Strike Description:
ASA Strike
Strike Number:
82-0110
UOM:
1
Uid:
SAR100LC8204LNL10B
Url Title:
lc-8204-lnl-10b
Title:
LC-8204 LNL 10B Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T11:53:40+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1157
Popularity:
5
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
