  • Locksets
  • Sargent LC-8204 LNL 26D Grade 1 Storeroom or Closet Mortise Lock L - Lever LN - Rose Field Reversible Less Cylinder ASA Strike Satin Chrome

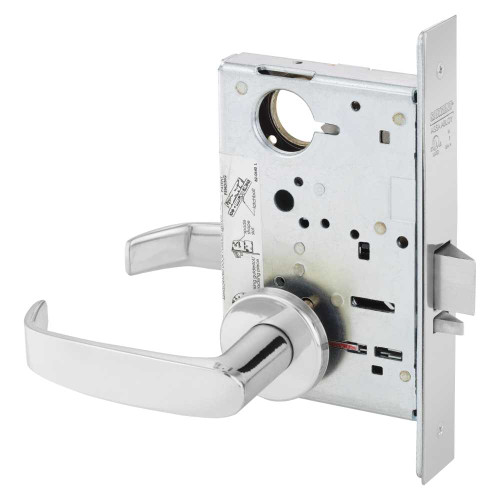

Sargent LC-8204 LNL 26D Grade 1 Storeroom or Closet Mortise Lock L - Lever LN - Rose Field Reversible Less Cylinder ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
LC-8204 LNL 26D
$795.93
Sargent LC-8204 LNL 26D Grade 1 Storeroom or Closet Mortise Lock L - Lever LN - Rose Field Reversible Less Cylinder ASA Strike Satin Chrome
$795.93

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Armor Front Dimensions:
1-1/4" x 8"
ADA:
Yes
Manufacturer:
Sargent
Series:
8200 Line Lever Mortise Locks
Parent Manufacturer:
Assa Abloy
Base Material:
Brass Bronze
Can Be Keyed:
Yes
Commercial/Residential:
Commercial
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Backset (in):
2-3/4"
Country Of Origin:
USA
Deadbolt Throw (in):
Not Applicable
Door Handing:
Non-handed
Cylinder Type:
Less Cylinder
Door Range (Thickness):
1-3/4" - 1-3/4"
Electronic:
No
Fire Rated:
2 Hours {B}
Finish Description:
Satin Chrome
Finish:
626/US26D
Function:
Storeroom
Includes Cylinder(s)?:
No
Latch Description:
Dead Latch
Grade:
Grade 1
Keyway:
Not Applicable
Interior/Exterior:
Interior/Exterior
Lever/Knob/Pull Design:
L
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Latch Dimensions:
1-1/4" x 8"
Lever/Knob/Pull:
Lever
Latch Throw (in):
3/4"
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 3:
Less Cylinder
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 2:
L Lever
Specifications Bullet 4:
LN Rose
Specifications Bullet 8:
2-1/8" Rose Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 7:
2-3/8" Projection
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 14:
10 Year Warranty
Pocket Depth (in):
6-5/8" x 4-1/2"
Rose/Escutcheon:
Rose
Projection (in):
2-3/8"
Pocket Dimensions:
6-5/8" x 4-1/2"
Product Warranty:
10 Year Warranty
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
2-1/8"
Rose/Escutcheon Design:
LN
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
82-0110
UOM:
1
Uid:
SAR100LC8204LNL26D
Url Title:
lc-8204-lnl-26d
Title:
LC-8204 LNL 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-26T06:55:27+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1133
Avg Lead Time:
19
Popularity:
3
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
