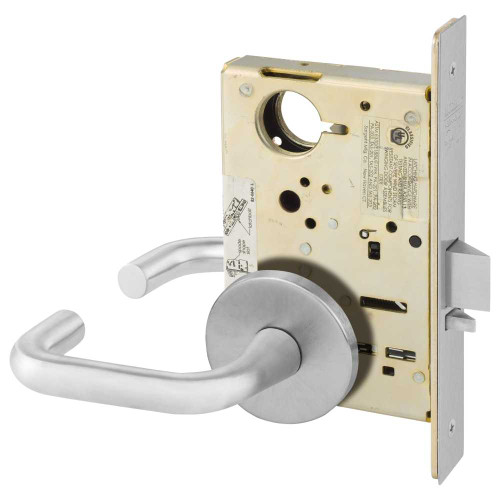

Sargent LC-8237 OL 26D Grade 1 Classroom Mortise Lock L - Lever O - Rose Field Reversible Less Cylinder ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
LC-8237 OL 26D
$795.93
Sargent LC-8237 OL 26D Grade 1 Classroom Mortise Lock L - Lever O - Rose Field Reversible Less Cylinder ASA Strike Satin Chrome
$795.93

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Series:
8200 Line Lever Mortise Locks
ADA:
Yes
Armor Front Dimensions:
1-1/4" x 8"
Manufacturer:
Sargent
Parent Manufacturer:
Assa Abloy
Base Material:
Brass Bronze
Backset (in):
2-3/4"
Commercial/Residential:
Commercial
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Can Be Keyed:
Yes
Deadbolt Throw (in):
Not Applicable
Cylinder Type:
Less Cylinder
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-3/4"
Country Of Origin:
USA
Electronic:
No
Fire Rated:
2 Hours {B}
Finish Description:
Satin Chrome
Finish:
626/US26D
Function:
Classroom
Grade:
Grade 1
Includes Cylinder(s)?:
No
Latch Description:
Dead Latch
Keyway:
Not Applicable
Interior/Exterior:
Interior/Exterior
Latch Throw (in):
3/4"
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
L
Specifications Bullet 1:
Grade 1 Classroom Function Mortise Lockset
Latch Dimensions:
1-1/4" x 8"
Specifications Bullet 3:
Less Cylinder
Specifications Bullet 4:
O Rose
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 2:
L Lever
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 7:
2-3/8" Projection
Specifications Bullet 8:
2-3/4" Rose Dimension
Specifications Bullet 14:
10 Year Warranty
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/4"
Pocket Depth (in):
6-5/8" x 4-1/2"
Pocket Dimensions:
6-5/8" x 4-1/2"
Projection (in):
2-3/8"
Product Warranty:
10 Year Warranty
Rose/Escutcheon:
Rose
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
O
Rose/Escutcheon Dimensions (in):
2-3/4"
Selling Quantity:
1
Strike Description:
ASA Strike
UOM:
1
Strike Number:
82-0110
Uid:
SAR100LC8237OL26D
Url Title:
lc-8237-ol-26d
Title:
LC-8237 OL 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T13:23:38+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1133
Popularity:
8
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
