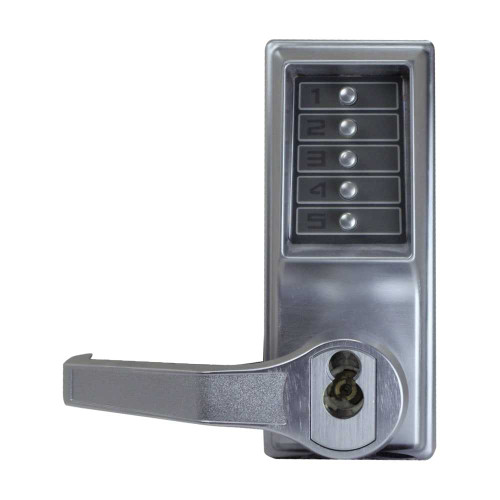

Kaba Simplex LL1041B-26D-41 Pushbutton Cylindrical Lever Lock Combination Entry/Passage Functions with Key Override 2-3/4 Backset 1/2 Throw Latch 6/7-Pin SFIC Prep Less Core Satin Chrome Finish Left Hand/Left Hand Reverse

Kaba Simplex

Write a Review
SKU:
LL1041B-26D-41
$664.44
Kaba Simplex LL1041B-26D-41 Pushbutton Cylindrical Lever Lock Combination Entry/Passage Functions with Key Override 2-3/4 Backset 1/2 Throw Latch 6/7-Pin SFIC Prep Less Core Satin Chrome Finish Left Hand/Left Hand Reverse
UPC:
820103317306
$664.44

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf
videoSimplex 1000 / L1000 - How to Reset Unknown Combination - New Style Chamberhttps://youtu.be/J4avWH1mlEc

Specifications

Brand:
Kaba Simplex
Country of Origin:
Mexico
Rose/Escutcheon:
Escutcheon
Specifications Bullet 3:
SFIC Housing Less Core
Specifications Bullet 4:
2-3/4" Backset
Finish:
626/US26D
Backset (in):
2-3/4"
Certification:
BMHA Certified Grade 1, UL Listed
Cylinder Type:
SFIC Housing
Function:
Entrance
Latch Description:
Dead Latch
Product Height (in):
7-3/8"
UOM:
1
Specifications Bullet 13:
For Doors 1-3/8" - 2-1/4" Thick
Specifications Bullet 2:
ADA Lever
Specifications Bullet 6:
Entrance Function
Electronic:
No
Lever/Knob/Pull Design:
ADA
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Includes Cylinder(s)?:
No
Can Be Keyed:
Yes
Specifications Bullet 14:
BMHA Certified Grade 1, UL Listed
Specifications Bullet 8:
5" Minimum Stile
Specifications Bullet 12:
1/2" Latch Throw
Door Handing:
Left Hand
Latch Dimensions:
1-1/8" x 2-1/4"
ADA:
Yes
Door Range (Thickness):
1-3/8" - 2-1/4"
Product Width (in):
3-1/8"
Commercial Residential:
Commercial
Base Material:
Brass or Bronze
Finish Description:
Satin Chrome
Minimum Door Thickness (in):
1-3/8"
Strike Dimensions:
1-1/4" x 4-7/8"
Technology:
Single Access Code
Specifications Bullet 9:
3-13/16" Projection
Specifications Bullet 1:
Grade 1 Cylindrical Single Access Code Pushbutton Lockset
Latch Throw (in):
1/2"
Latch Bore Diameter (in):
1"
Maximum Door Thickness (in):
2-1/4"
Minimum Stile (in):
5"
Specifications Bullet 11:
1-1/8" x 2-1/4" Dead Latch
Lever/Knob/Pull:
Lever
Specifications Bullet 10:
3-1/8" x 8-7/8" Escutcheon Dimension
Strike Description:
ASA Strike
Rose/Escutcheon Dimensions (in):
3-1/8" x 8-7/8"
Projection (in):
3-13/16"
Specifications Bullet 7:
Single Access Code
Type:
Integrated and Pushbutton
User Codes:
1
Manufacturer:
Kaba Simplex
Grade:
Grade 1
Series:
1000 Series
Specifications Bullet 15:
3 Year Warranty
Keyway:
Less Core
Product Warranty:
3 Year Warranty
Parent Manufacturer:
DormaKaba
Uid:
SIM100LL1041B26D41
Url Title:
ll1041b-26d-41
Title:
LL1041B-26D-41
Sub Type:
Cylindrical Locks with Keypad Trim
Manufacturer:
DormaKaba
Series:
Simplex L1000 Series
Last Modified:
2023-02-28T07:02:33+00:00
Last Pricing:
2022-09-30T00:00:00+00:00
Msrp:
823
Avg Lead Time:
35
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
9
Limited Warranty:
3 Years
Fire Rated:
3 Hours {A}
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
DormaKaba

Warranty Information

3 Year Warranty
