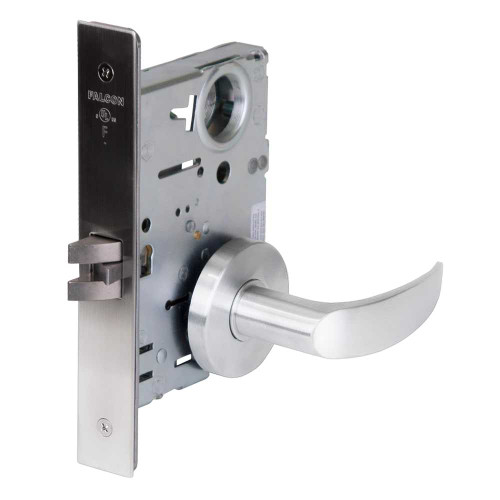

Falcon MA101 AG 626 Grade 1 Passage Mortise Lock Avalon Lever Gala Rose Satin Chrome Finish

Falcon

Write a Review
SKU:
MA101 AG 626
$258.34
Falcon MA101 AG 626 Grade 1 Passage Mortise Lock Avalon Lever Gala Rose Satin Chrome Finish
$258.34

Descriptions

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.
TypeTitleURL
brochure/sales-materialFalcon Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/ALLEGION_finish-chart.pdf
catalogFalcon Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/falcon/catalog/Falcon_Locks_Catalog_110449.pdf
installation-instructionsMA-Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/108476.pdf
Video: Falcon MA Mortise Lock Installationhttps://youtu.be/GYxFyOeYDlo
price-book2024 Falcon Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/falcon/pricebooks/FAL_pricebook_3-2024.pdf
sell-sheetMA-Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/literature/106198.pdf
service-manualMA-Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/falcon/manuals/106694.pdf

Specifications

Brand:
Falcon
Door Handing:
Non-handed
Lever/Knob/Pull Design:
Avalon
Finish Description:
Satin Chrome
Fire Rated:
Yes
Manufacturer:
Falcon
Certification:
ANSI A 156.13, Series 1000, Grade 1
Grade:
Grade 1
Specifications Bullet 3:
Gala Rose
Commercial Residential:
Commercial
Finish:
626/US26D
Rose/Escutcheon:
Rose
Series:
MA Series Grade 1 Mortise Locks
Electronic:
No
Specifications Bullet 13:
7 Year Warranty
Cylinder Type:
Keyless
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Backset (in):
2-3/4"
Interior/Exterior:
Interior/Exterior
Keyway:
Not Applicable
Base Material:
Brass or Bronze
Rose/Escutcheon Dimensions (in):
2-9/16"
Deadbolt Throw (in):
Not Applicable
Pocket Dimensions:
6-5/8" X 4-1/2"
Latch Description:
Spring Latch
Lever/Knob/Pull:
Lever
Specifications Bullet 4:
2-3/4" Backset
Door Range (Thickness):
1-3/4" - 1-7/8"
Product Warranty:
7 Year Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Can Be Keyed:
No
Function:
Passage
Maximum Door Thickness (in):
1-7/8"
Includes Cylinder(s)?:
No
Specifications Bullet 8:
3/4" Spring Latch
Specifications Bullet 6:
2-5/8" Projection
Armor Front Dimensions:
1-1/4" x 8"
Parent Manufacturer:
Allegion
Latch Throw (in):
3/4"
Specifications Bullet 2:
Avalon Lever
Specifications Bullet 11:
For Doors 1-3/4" - 1-7/8" Thick
Selling Quantity:
1
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 12:
ANSI A 156.13, Series 1000, Grade 1
Specifications Bullet 7:
2-9/16" Rose Dimension
Rose/Escutcheon Design:
Gala
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Strike Description:
ASA Strike
Strike Number:
A8737-1
Projection (in):
2-5/8"
UOM:
1
ADA:
Yes
Uid:
FAL100MA101AG626
Url Title:
ma101-ag-626
Title:
MA101 AG 626 Falcon Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T07:29:19+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
588
Avg Lead Time:
25
Popularity:
3
Pack Weight:
7
Pack Length:
10.25
Pack Width:
9
Pack Height:
5
Unit Of Measure:
EACH
Vendor:
Allegion
Assembly Item:
1

Warranty Information

7 Year Warranty
