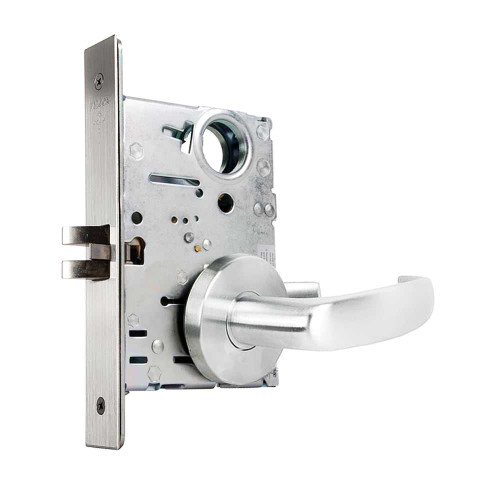

Falcon MA101 QG 626 Grade 1 Passage Mortise Lock Quantum Lever Gala Rose Satin Chrome Finish

Falcon

Write a Review
SKU:
MA101 QG 626
$258.34
Falcon MA101 QG 626 Grade 1 Passage Mortise Lock Quantum Lever Gala Rose Satin Chrome Finish
$258.34

Descriptions

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.
TypeTitleURL
brochure/sales-materialFalcon Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/ALLEGION_finish-chart.pdf
catalogFalcon Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/falcon/catalog/Falcon_Locks_Catalog_110449.pdf
installation-instructionsMA-Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/108476.pdf
Video: Falcon MA Mortise Lock Installationhttps://youtu.be/GYxFyOeYDlo
price-book2024 Falcon Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/falcon/pricebooks/FAL_pricebook_3-2024.pdf
sell-sheetMA-Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/literature/106198.pdf
service-manualMA-Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/falcon/manuals/106694.pdf

Specifications

Brand:
Falcon
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Manufacturer:
Falcon
Strike Dimensions:
1-1/4" x 4-7/8"
Deadbolt Throw (in):
Not Applicable
Electronic:
No
Base Material:
Brass or Bronze
Commercial Residential:
Commercial
Cylinder Type:
Keyless
Door Handing:
Non-handed
Can Be Keyed:
No
Fire Rated:
Yes
Finish:
626/US26D
Lever/Knob/Pull Design:
Quantum
Function:
Passage
Latch Throw (in):
3/4"
Includes Cylinder(s)?:
No
Finish Description:
Satin Chrome
Door Range (Thickness):
1-3/4" - 1-7/8"
Projection (in):
2-11/16"
Keyway:
Not Applicable
Certification:
ANSI A 156.13, Series 1000, Grade 1
Interior/Exterior:
Interior/Exterior
Specifications Bullet 2:
Quantum Lever
Specifications Bullet 7:
2-9/16" Rose Dimension
Grade:
Grade 1
Specifications Bullet 8:
3/4" Spring Latch
Lever/Knob/Pull:
Lever
Specifications Bullet 3:
Gala Rose
Latch Description:
Spring Latch
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 6:
2-11/16" Projection
Backset (in):
2-3/4"
Specifications Bullet 11:
For Doors 1-3/4" - 1-7/8" Thick
Rose/Escutcheon Design:
Gala
Strike Number:
A8737-1
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Pocket Dimensions:
6-5/8" X 4-1/2"
Selling Quantity:
1
Specifications Bullet 12:
ANSI A 156.13, Series 1000, Grade 1
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Maximum Door Thickness (in):
1-7/8"
Rose/Escutcheon:
Rose
Rose/Escutcheon Dimensions (in):
2-9/16"
Product Warranty:
7 Year Warranty
UOM:
1
Armor Front Dimensions:
1-1/4" x 8"
ADA:
Yes
Strike Description:
ASA Strike
Parent Manufacturer:
Allegion
Series:
MA Series Grade 1 Mortise Locks
Specifications Bullet 13:
7 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 4:
2-3/4" Backset
Uid:
FAL100MA101QG626
Url Title:
ma101-qg-626
Title:
MA101 QG 626 Falcon Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-26T06:45:57+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
588
Avg Lead Time:
22
Popularity:
3
Pack Weight:
7
Pack Length:
10.25
Pack Width:
9
Pack Height:
5
Unit Of Measure:
EACH
Vendor:
Allegion
Assembly Item:
1

Warranty Information

7 Year Warranty
