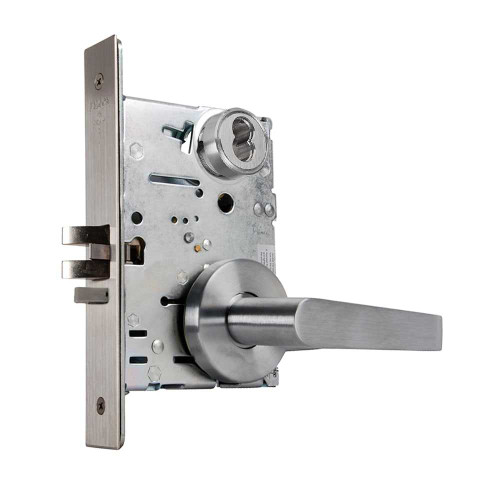

Falcon MA581B DG 626 Grade 1 Storeroom Mortise Lock SFIC Prep Less Core Dane Lever Gala Rose Satin Chrome Finish

Falcon

Write a Review
SKU:
MA581B DG 626
$330.81
Falcon MA581B DG 626 Grade 1 Storeroom Mortise Lock SFIC Prep Less Core Dane Lever Gala Rose Satin Chrome Finish
$330.81

Descriptions

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.
TypeTitleURL
brochure/sales-materialFalcon Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/ALLEGION_finish-chart.pdf
catalogFalcon Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/falcon/catalog/Falcon_Locks_Catalog_110449.pdf
installation-instructionsMA-Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/108476.pdf
Video: Falcon MA Mortise Lock Installationhttps://youtu.be/GYxFyOeYDlo
price-book2024 Falcon Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/falcon/pricebooks/FAL_pricebook_3-2024.pdf
sell-sheetMA-Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/literature/106198.pdf
service-manualMA-Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/falcon/manuals/106694.pdf

Specifications

Brand:
Falcon
Armor Front Dimensions:
1-1/4" x 8"
Series:
MA Series Grade 1 Mortise Locks
Parent Manufacturer:
Allegion
Manufacturer:
Falcon
ADA:
Yes
Commercial Residential:
Commercial
Base Material:
Brass or Bronze
Certification:
ANSI A 156.13, Series 1000, Grade 1
Backset (in):
2-3/4"
Can Be Keyed:
Yes
Deadbolt Throw (in):
Not Applicable
Cylinder Type:
Mortise SFIC Housing
Electronic:
No
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-7/8"
Fire Rated:
Yes
Finish Description:
Satin Chrome
Function:
Classroom
Grade:
Grade 1
Finish:
626/US26D
Keyway:
Less Core
Latch Throw (in):
3/4"
Latch Description:
Dead Latch
Includes Cylinder(s)?:
No
Interior/Exterior:
Interior/Exterior
Lever/Knob/Pull Design:
Dane
Specifications Bullet 2:
Dane Lever
Specifications Bullet 1:
Grade 1 Classroom Function Mortise Lockset
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Lever/Knob/Pull:
Lever
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
Gala Rose
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 8:
2-9/16" Rose Dimension
Specifications Bullet 13:
ANSI A 156.13, Series 1000, Grade 1
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 12:
For Doors 1-3/4" - 1-7/8" Thick
Maximum Door Thickness (in):
1-7/8"
Specifications Bullet 14:
7 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
7 Year Warranty
Pocket Dimensions:
6-5/8" X 4-1/2"
Rose/Escutcheon Design:
Gala
Projection (in):
2-1/2"
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
2-9/16"
Rose/Escutcheon:
Rose
Strike Description:
ASA Strike
Strike Number:
A8737-1
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Uid:
FAL100MA581BDG626
Url Title:
ma581b-dg-626
Title:
MA581B DG 626 Falcon Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-26T06:56:18+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
753
Avg Lead Time:
23
Popularity:
3
Unit Of Measure:
EACH
Vendor:
Allegion
Assembly Item:
1

Warranty Information

7 Year Warranty
