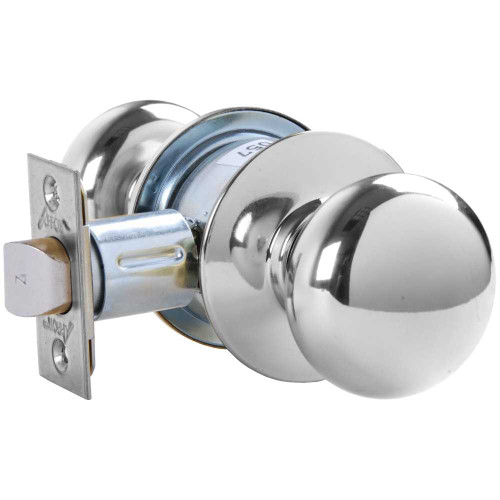

Arrow MK01-TA-26D Grade 2 Passage Cylindrical Lock Tudor Knob Non-Keyed Satin Chrome Finish Non-handed

Arrow

Write a Review
SKU:
MK01-TA-26D
$68.11
Arrow MK01-TA-26D Grade 2 Passage Cylindrical Lock Tudor Knob Non-Keyed Satin Chrome Finish Non-handed
UPC:
810007502571
$68.11

Descriptions

Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.
TypeTitleURL
cut-sheetMK Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/MKSeries.pdf
templateMK Series Dummy Knob Templatehttps://dvwi9lnoau63q.cloudfront.net/arrow/template/MK_Template_Dummy_1.pdf
MK Series Templatehttps://dvwi9lnoau63q.cloudfront.net/arrow/template/MK_Series_Template_1.pdf

Specifications

Brand:
Arrow
Base Material:
Brass, Bronze
Series:
MK Series Grade 2 Cylindrical Knob Locks
Specifications Bullet 5:
1-1/8" x 2-3/4" T-Strike
Backset (in):
2-3/4"
Specifications Bullet 1:
Grade 2 Passage Function Cylindrical Lockset
Commercial Residential:
Commercial
Product Warranty:
1 Year Warranty
Parent Manufacturer:
Assa Abloy
Country Of Origin:
Mexico
Can Be Keyed:
No
Cylinder Type:
Keyless
Finish Description:
Satin Chrome
Latch Throw (in):
1/2"
Latch Number:
104
Finish:
626/US26D
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 11:
1 Year Warranty
Fire Rated:
3 Hours {A}
Specifications Bullet 3:
2-3/4" Backset
Includes Cylinder(s)?:
No
Latch Description:
Spring Latch
Electronic:
No
Bore Hole Diameter (in):
2-1/8"
Latch Bore Diameter (in):
1"
Keyway:
Not Applicable
Door Range (Thickness):
1-3/8" - 1-3/4"
Certification:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Specifications Bullet 7:
2-9/16" Rose
Specifications Bullet 6:
2-7/16" Projection
Strike Number:
300
Specifications Bullet 2:
Tudor Knob
Lever/Knob/Pull Design:
Tudor
Selling Quantity:
1
Door Handing:
Non-handed
Strike Description:
T-Strike
Function:
Passage
Rose/Escutcheon Design:
Not Applicable
Grade:
Grade 2
ADA:
No
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Lever/Knob/Pull:
Knob
Rose/Escutcheon:
Rose
Projection (in):
2-7/16"
UOM:
1
Strike Dimensions:
1-1/8" x 2-3/4"
Minimum Door Thickness (in):
1-3/8"
Rose/Escutcheon Dimensions (in):
2-9/16"
Specifications Bullet 10:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Specifications Bullet 4:
1-1/8" x 2-1/4" Spring Latch
UPC:
810007502571
Manufacturer:
Arrow
Specifications Bullet 8:
For Doors 1-3/8" - 1-3/4" Thick
Maximum Door Thickness (in):
1-3/4"

Warranty Information

1 Year Warranty
