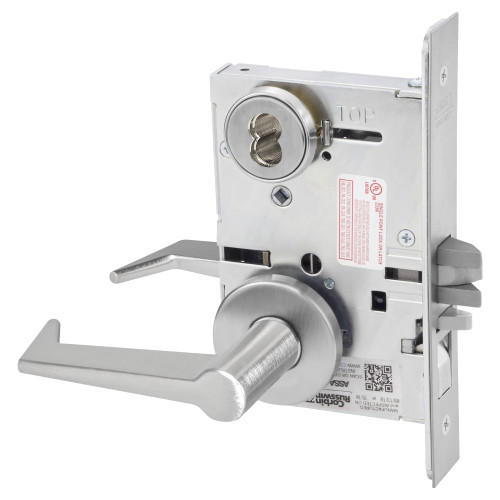

Corbin Russwin ML2051 LWA 626 CL6 Entrance or Office Mortise Lock LW Lever A Rose 6-Pin LFIC Less Core Satin Chrome

Corbin Russwin

Write a Review
SKU:
ML2051 LWA 626 CL6
$717.85
Corbin Russwin ML2051 LWA 626 CL6 Entrance or Office Mortise Lock LW Lever A Rose 6-Pin LFIC Less Core Satin Chrome
$717.85

Descriptions

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
TypeTitleURL
brochure/sales-materialCorbin Strikes/Kits Brochurehttps://dvwi9lnoau63q.cloudfront.net/corbin/brochures/Corbin_Strikes-Kits_Brochure.pdf
catalogML2000 and ML20900 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_ML2000_Series_Mortise_Lock_Catalog.pdf
installation-instructionsML2000 Inspire Roseless Trim (J) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Roseless-ML-Instructions-Rev-2-11.pdf
ML2000VR Vandal Resistant Trim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM201.PDF
Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM299.pdf
Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM289.pdf
Video: Changing the Hand on the ML20608https://youtu.be/oXqq0fOz4Uw
Video: HPSK Push/Pull Trim Installationhttps://youtu.be/htk2fZmiXdo
Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installationhttps://youtu.be/VrRgXEBWg9k
literatureML2000 Series Mortise Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/127.1_ASSA_ABLOY_mrEPD_CorbinRusswinML2000SeriesMortiseLock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
touchless-general-solutionsAssa Abloy Hands-Free and Touchless Solutions Flyerhttps://dvwi9lnoau63q.cloudfront.net/corbin/literature/flyer_handsfree_touchless.pdf

Specifications

Brand:
Corbin Russwin
Parent Manufacturer:
Assa Abloy
Manufacturer:
Corbin Russwin
ADA:
Yes
Backset (in):
2-3/4"
Series:
ML2000 Series Mortise Locks
Can Be Keyed:
Yes
Certification:
ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
Deadbolt Throw (in):
Not Applicable
Base Material:
Brass or Bronze
Cylinder Type:
Mortise LFIC Housing
Finish Description:
Satin Chrome
Fire Rated:
3 Hours {A}
Finish:
626/US26D
Door Range (Thickness):
1-3/4" - 1-3/4"
Door Handing:
Non-handed
Function:
Entrance Office
Includes Cylinder(s)?:
No
Grade:
Grade 1
Keyway:
Less Core
Latch Description:
Dead Latch
Specifications Bullet 1:
Grade 1 Entrance Office Function Mortise Lockset
Specifications Bullet 2:
LW Lever
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
LW
Lever/Knob/Pull:
Lever
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 4:
A Rose
Specifications Bullet 8:
2-1/4" Rose Dimension
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 14:
10 Year Warranty
Pocket Dimensions:
6-5/8" X 4-1/2"
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
10 Year Warranty
Projection (in):
2-1/2"
Rose/Escutcheon Dimensions (in):
2-1/4"
Rose/Escutcheon Design:
A
Rose/Escutcheon:
Rose
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
SA118
Uid:
COR300ML2051LWA626CL6
Url Title:
ml2051-lwa-626-cl6
Title:
ML2051 LWA 626 CL6 Corbin Russwin Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T12:57:15+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1018
Popularity:
8
Pack Weight:
4
Pack Length:
10
Pack Width:
7.5
Pack Height:
4.5
Country Of Origin:
USA
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Assembly Item:
1

Warranty Information

10 Year Warranty
