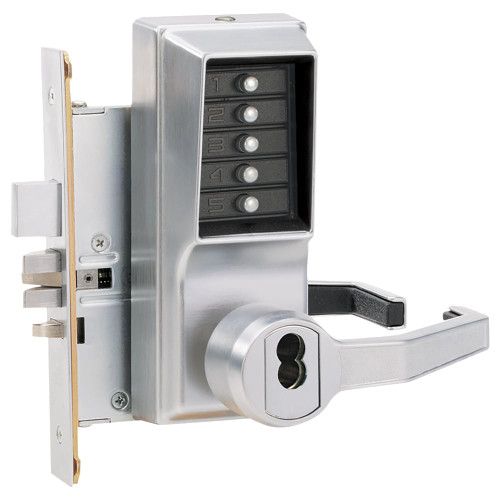

Kaba Simplex R8148S-26D-41 Mortise Combination Lever Lock Key Override Passage Lockout with Deadbolt Schlage FSIC Prep Less Core Satin Chrome

Kaba Simplex

Write a Review
SKU:
R8148S-26D-41
$1,132.95
Kaba Simplex R8148S-26D-41 Mortise Combination Lever Lock Key Override Passage Lockout with Deadbolt Schlage FSIC Prep Less Core Satin Chrome
UPC:
840067623206
$1,132.95

Descriptions

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
TypeTitleURL
catalogSimplex Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/dormakaba/guides/KABA_catalog_simplex.pdf
price-book2024 Simplex Parts Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex-parts_1-2024.pdf
2024 Simplex Price Book (effective 1.2024)https://dvwi9lnoau63q.cloudfront.net/dormakaba/pricebooks/DORMA_pricebook_simplex_1-2024.pdf

Specifications

Brand:
Kaba Simplex
Specifications Bullet 2:
ADA Lever
Box Depth (in):
11"
Keyway:
Less Core
Latch Throw (in):
3/4"
Specifications Bullet 3:
Schlage LFIC Housing Less Core
Product Warranty:
3 Year Warranty
Door Handing:
Right Hand
Specifications Bullet 1:
Grade 1 Mortise PIN Access Pushbutton Lockset
Maximum Door Thickness (in):
2-1/4"
Box Width (in):
10-1/2"
Specifications Bullet 4:
Single Access Code
Electronic:
No
Grade:
Grade 1
Rose/Escutcheon:
Escutcheon
Specifications Bullet 6:
3-13/16" Projection
Certification:
BHMA Grade 1, UL Listed, A Label
Door Range (Thickness):
1-3/4" - 2-1/4"
Country of Origin:
Mexico
Specifications Bullet 10:
3 Year Warranty
Deadbolt Throw (in):
1"
Lever/Knob/Pull Design:
ADA
Technology:
PIN Access
Box Weight (lbs):
12.5 lbs
Cylinder Type:
Schlage LFIC Housing
Can Be Keyed:
Yes
Projection (in):
3-13/16"
Product Width (in):
3-1/8"
Specifications Bullet 5:
Deadbolt Function
Specifications Bullet 8:
For Doors 1-3/4" - 2-1/4" Thick
Strike Dimensions:
1-1/4" x 4-7/8"
Finish Description:
Satin Chrome
Specifications Bullet 9:
BHMA Grade 1, UL Listed, A Label
Latch Description:
Deadbolt
Specifications Bullet 7:
3-1/8" x 7-3/8" Escutcheon Dimension
UPC:
840067623206
UOM:
1
Interior/Exterior:
Interior/Exterior
Finish:
626/US26D
Rose/Escutcheon Dimensions (in):
3-1/8" x 7-3/8"
Function:
Deadbolt
Pocket Dimensions:
6-5/8" x 4-1/2"
Selling Quantity:
1
Includes Cylinder(s)?:
No
Lever/Knob/Pull:
Lever
Box Height (in):
8"
Type:
Integrated and Pushbutton
Strike Description:
ASA Strike
Minimum Door Thickness (in):
1-3/4"
Backset (in):
2-3/4"
Series:
Simplex 8100 Series
Manufacturer:
Kaba Simplex
Trademark Term:
Simplex
User Codes:
1
ADA:
Yes
Armor Front Dimensions:
1-1/4" x 8"
Audit Trails:
Not Applicable
Base Material:
Brass Bronze
Parent Manufacturer:
DormaKaba
Product Height (in):
7-3/8"
Commercial/Residential:
Commercial
Uid:
SIM100R8148S26D41
Url Title:
r8148s-26d-41
Title:
R8148S-26D-41
Sub Type:
Mortise Locks with Keypad Trim
Manufacturer:
DormaKaba
Last Modified:
2023-02-26T06:57:29+00:00
Last Pricing:
2022-09-30T00:00:00+00:00
Msrp:
935
Avg Lead Time:
183
Popularity:
3
Unit Of Measure:
Each
Base Material:
Brass or Bronze

Warranty Information

3 Year Warranty
