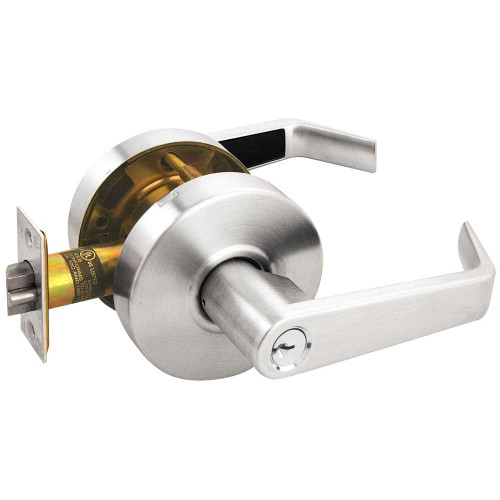

Arrow RL12-SR-26D Grade 2 Storeroom Cylindrical Lock Sierra Lever Conventional Cylinder Satin Chrome Finish Non-handed

Arrow

Write a Review
SKU:
RL12-SR-26D
$76.66
Arrow RL12-SR-26D Grade 2 Storeroom Cylindrical Lock Sierra Lever Conventional Cylinder Satin Chrome Finish Non-handed
UPC:
810007503837
$76.66

Descriptions

The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
TypeTitleURL
catalog2014 Arrow Full Line Cataloghttps://dvwi9lnoau63q.cloudfront.net/arrow/catalog/ARR_catalog_2014.pdf
cut-sheetRL Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/RLSeries.pdf
instructionsRL Series Instructionshttps://dvwi9lnoau63q.cloudfront.net/arrow/instructions/RL_Install_Inst.pdf
Video: How to Install a Commercial Leverhttps://youtu.be/mzirx11iQPM
templateRK & RL Series Templatehttps://dvwi9lnoau63q.cloudfront.net/arrow/template/RK_RL_Template.pdf

Specifications

Brand:
Arrow
Selling Quantity:
1
Latch Throw (in):
1/2"
Rose/Escutcheon:
Rose
Door Handing:
Non-handed
Backset (in):
2-3/4"
Latch Bore Diameter (in):
1"
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Specifications Bullet 8:
3-5/16" Rose
Function:
Storeroom
Rose/Escutcheon Design:
Not Applicable
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Certification:
ANSI A156.2, Series 4000, Grade 2 UL Listed
Commercial Residential:
Commercial
Grade:
Grade 2
Lever/Knob/Pull Design:
Sierra
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 12:
5 Year Warranty
Specifications Bullet 7:
2-7/16" Projection
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 3:
Conventional A Keyway
Minimum Door Thickness (in):
1-3/8"
Projection (in):
2-7/16"
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 2 UL Listed
Finish:
626/US26D
Includes Cylinder(s)?:
Yes
Door Range (Thickness):
1-3/8" - 1-3/4"
Fire Rated:
3 Hours {A}
Cylinder Type:
Conventional
Electronic:
No
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Latch Number:
R71
Rose/Escutcheon Dimensions (in):
3-5/16"
Maximum Door Thickness (in):
1-3/4"
Can Be Keyed:
Yes
Lever/Knob/Pull:
Lever
Specifications Bullet 2:
Sierra Lever
Latch Description:
Dead Latch
Keyway:
A Keyway
Product Warranty:
5 Year Warranty
Strike Number:
R62
Country Of Origin:
Taiwan
Strike Description:
ASA Strike
Specifications Bullet 1:
Grade 2 Storeroom Function Cylindrical Lockset
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
UOM:
1
Series:
RL Series Grade 2 Cylindrical Lever Locks
ADA:
Yes
Finish Description:
Satin Chrome
Base Material:
Brass Bronze
Manufacturer:
Arrow
UPC:
810007503837
Parent Manufacturer:
Assa Abloy

Warranty Information

5 Year Warranty
