SDC 1591U Mortise EMLock for Sliding Doors 12/24 VDC 850 Lbs Holding Force

SDC

Write a Review
SKU:
1591U
$324.87
SDC 1591U Mortise EMLock for Sliding Doors 12/24 VDC 850 Lbs Holding Force
$324.87

Descriptions

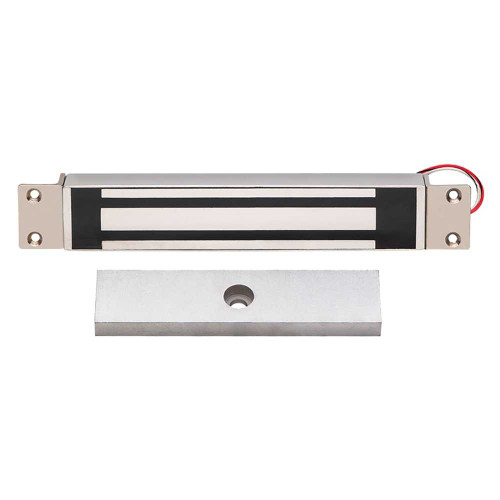

The SDC 1590 Series is a compact mortise EMLock with 850lbs. of holding power packed in a 10"L x 1.4375"W x 1.5"D steel case. The 1590 EMLock is ideal for securing sliding or swinging, manual or automatic doors. Its durability for high frequency use and its mortise installation make it the choice of specification writers, owners and architects. With only two parts, the lock mortised in the frame and the armature in the door, the EMLock secures the door in a closed position. When power is cut the EMLock releases instantly.
TypeTitleURL
catalog2020 SDC Cataloghttps://dvwi9lnoau63q.cloudfront.net/sdc/catalogs/CondensedHardwareBrochure.pdf
data-sheet1511S & 1511T Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/1511s-Datasheet.pdf
1590 Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/1590_Datasheet.pdf
350 Narrow Line EMLock Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/350_Datasheet.pdf
EH Door Holders Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/EHDoorHolders_Datasheet.pdf
Excel Series Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/ExcelSeries_Datasheet.pdf
EZ Modular Kits Frameshttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/ez_modularkitsframes.pdf
Shear Locks Data Sheethttps://dvwi9lnoau63q.cloudfront.net/sdc/datasheet/ShearLocks_Datasheet.pdf
installation-instructions350 Narrow Line Magnetic Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sdc/installation/INST-350.pdf
E600 Magnetic Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sdc/installation/INST-E600.pdf
E6200 Magnetic Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sdc/installation/INST-E6200.pdf
Installation Instructions E1200 Series Magnetic Lockhttps://dvwi9lnoau63q.cloudfront.net/sdc/installation/INST-E1200.pdf
Series 1510, 1570, 1580 EMLOCK Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sdc/installation/INST-1500-10-70-80.pdf

Specifications

Brand:
SDC
Series:
SDC Magnetic Locks and Door Holders
Manufacturer:
SDC
Current Draw:
800/400mA @ 12/24 VDC Current
Certification:
UL Listed, UL 295
Base Material:
Stainless Steel
Finish Description:
Stainless Steel
Dimensions:
10" x 1-7/16" x 1-1/4"
Finish:
630
Fire Rated:
No
Door Range (Thickness):
-
Grade:
Not Graded
FS/FSE Mode:
Not Applicable
Specifications Bullet 1:
Sliding Door Electromagnetic Lock
Holding Force (lbs):
800
Function:
Sliding Door
Specifications Bullet 2:
800 lbs Holding Force
Specifications Bullet 6:
Includes Machine Screws
Specifications Bullet 4:
800/400mA @ 12/24 VDC Current
Specifications Bullet 3:
12/24 VDC Voltage
Specifications Bullet 5:
10" x 1-7/16" x 1-1/4" Unit Dimension
Voltage:
12/24 VDC Voltage
Specifications Bullet 7:
UL Listed, UL 295
Product Warranty:
Limited Warranty
Specifications Bullet 8:
Limited Warranty
Screw Pack:
Machine Screws
Uid:
SDC1591U
Url Title:
sdc1591u
Title:
SDC1591U Security Door Controls (SDC) Maglock
Type:
Electric Strikes, Bolts, Magnets
Sub Type:
Maglocks
Last Modified:
2024-03-15T05:01:07+00:00
Last Pricing:
2023-08-28T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
425
Avg Lead Time:
41
Popularity:
3
Vendor:
Security Door Controls

Warranty Information

Limited Warranty
