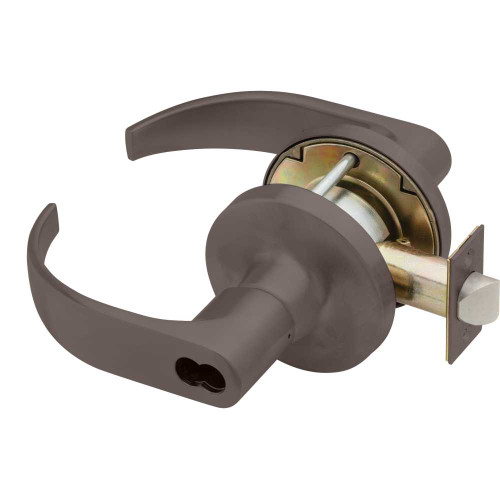

Falcon W511BD Q 613 Grade 2 Entry/Office Cylindrical Lock SFIC Prep Less Core Quantum Lever Standard Rose Dark Oxidized Satin Bronze Oil Rubbed Finish Non-handed

Falcon

Write a Review
SKU:
W511BD Q 613
$80.44
$80.44

Descriptions

Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (big and small), Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now masterkey across the complete Falcon product line.
TypeTitleURL
brochure/sales-materialFalcon Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/ALLEGION_finish-chart.pdf
catalogFalcon Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/falcon/catalog/Falcon_Locks_Catalog_110449.pdf
data-sheetT/W Series Data Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/Falcon_T_Series_and_W_Series_Data_Sheet_110522.pdf
installation-instructionsVideo: Falcon W Series Small Rose Lock Installationhttps://youtu.be/VLkFBuCM4uE
W Series Small Rose Installation Instructions, Dummy Trimhttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/107079.pdf
W Series Small Rose Installation Instructions, Leverhttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/107081.pdf
W Series W12 Lever Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/108469.pdf
W Series with Levers Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/falcon/installation_instructions/108467.pdf
price-book2024 Falcon Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/falcon/pricebooks/FAL_pricebook_3-2024.pdf
product-guideFalcon Cylindrical Lock Guidehttps://dvwi9lnoau63q.cloudfront.net/falcon/miscellaneous/Falcon_Cylindrical_Lock_Guide_110894.pdf
sell-sheetT and W Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/sell-sheets/Falcon_T_Series_and_W_Series_Data_Sheet_110522.pdf
W Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/falcon/sell-sheets/Falcon_W_Series_Sell_Sheet_104188.pdf

Specifications

Brand:
Falcon
Series:
W Series Grade 2 Cylindrical Lever Locks
Manufacturer:
Falcon
ADA:
Yes
Parent Manufacturer:
Allegion
Backset (in):
2-3/4"
Bore Hole Diameter (in):
2-1/8"
Commercial Residential:
Commercial
Can Be Keyed:
Yes
Base Material:
Bronze
Certification:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Door Handing:
Non-handed
Electronic:
No
Door Range (Thickness):
1-3/8" - 1-3/4"
Cylinder Type:
SFIC Housing
Finish:
613/US10B
Function:
Entrance Office
Grade:
Grade 2
Includes Cylinder(s)?:
No
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated:
3 Hours {A}
Latch Dimensions:
1-1/8" x 2-1/4"
Keyway:
Less Core
Latch Description:
Dead Latch
Latch Number:
30-197
Latch Bore Diameter (in):
1"
Lever/Knob/Pull Design:
Quantum
Lever/Knob/Pull:
Lever
Specifications Bullet 2:
Quantum Lever
Specifications Bullet 1:
Grade 2 Entrance Office Function Cylindrical Lockset
Latch Throw (in):
1/2"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 3:
SFIC Housing Less Core
Specifications Bullet 7:
3-1/8" Projection
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Specifications Bullet 12:
10 Year Warranty
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 8:
3-5/16" Rose
Product Warranty:
10 Year Warranty
Maximum Door Thickness (in):
1-3/4"
Rose/Escutcheon:
Rose
Projection (in):
3-1/8"
Minimum Door Thickness (in):
1-3/8"
Rose/Escutcheon Design:
Not Applicable
Strike Dimensions:
1-1/4" x 4-7/8"
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
3-5/16"
Strike Description:
ASA Strike
Strike Number:
30-148
UOM:
1
Uid:
FAL100W511BDQ613
Url Title:
w511bd-q-613
Title:
W511BD Q 613 Falcon Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-26T06:58:11+00:00
Last Pricing:
2023-02-28T00:00:00+00:00
Msrp:
166
Avg Lead Time:
24
Finish Family:
Dark Bronze
Popularity:
5
Pack Weight:
2.3
Pack Length:
7.25
Pack Width:
3.75
Pack Height:
6.75
Pack Volume:
183.515625
Ul Listing:
A Label
Ansi Code:
ANSI A156.2-2011, Series 4000, Grade 2
Restrictions:
None
Country Of Origin:
Taiwan
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

10 Year Warranty
