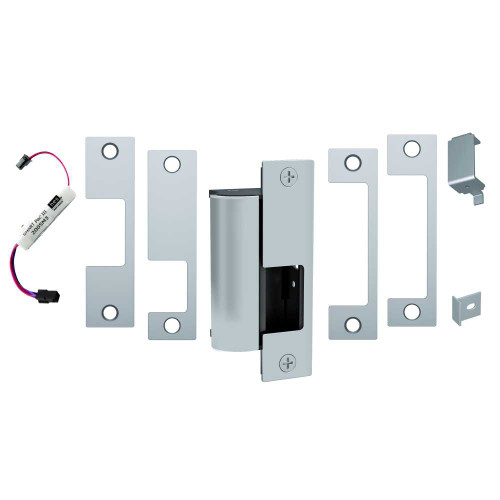

HES 1006CS-630 Fail Secure Complete 12/24VDC Electric Strike SMART Pac II J KD KM HM and AD Faceplates Satin Stainless Steel Finish

HES

Write a Review
SKU:
1006CS-630
$551.72
HES 1006CS-630 Fail Secure Complete 12/24VDC Electric Strike SMART Pac II J KD KM HM and AD Faceplates Satin Stainless Steel Finish
$551.72

Descriptions

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
TypeTitleURL
brochure/sales-materialAA ESH Electric Strike Overviewhttps://dvwi9lnoau63q.cloudfront.net/hes/literature/ESH_Electric_Strike_Overview_Brochure.pdf
catalog2021 HES/Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/hes/catalog/ASSA_ABLOY_ESH_Catalog.pdf
compatibility-chartHES Compatibility Charthttps://dvwi9lnoau63q.cloudfront.net/hes/compatibility-chart/HESCompatibilityChart2015.pdf
cross-reference-sheetHES Lock Cross Reference Charthttps://dvwi9lnoau63q.cloudfront.net/hes/cross-reference-sheet/HESLockCrossReference2015.pdf
dimensional-drawingHES 1006 Series Dimensionsal Drawingshttps://dvwi9lnoau63q.cloudfront.net/hes/dimensional-drawing/HES1006DimensionalDrawings.pdf
installation-guideHES 1006 Series Installation Guide (Dec. 2012 - Present)https://dvwi9lnoau63q.cloudfront.net/hes/installation-guide/HES1006InstallInstructions3062006.005REVC.pdf
HES 1006 Series Installation Guide (Prior to Dec. 2012)https://dvwi9lnoau63q.cloudfront.net/hes/installation-guide/HES1006InstallationInstructionspriorDec2012.pdf
installation-instructionsVideo: 1006 Electric Strike Series Installationhttps://youtu.be/pOBsFO2PI5o
literatureHES 1006 Series - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/hes/product-guide/106.1_ASSA_ABLOY_mrEPD_HES1006_electric_door_strike_20140417.pdf
price-book2023 HES Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/hes/pricebooks/HES_pricebook_11-2023.pdf
product-guideElectric Strike Selector Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/Electric_Strike_Selector_Guide.pdf
HES 1006 Series Overviewhttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HES1006SeriesOverview2015.pdf
HES Electric Strikes for Every Lockset Applicationhttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HES_guide_slectric-strikes.pdf
HES Electric Strikes How to Order Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HESESHowtoOrder2015.pdf
sell-sheetHES 1006 Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/hes/sell-sheet/HES_1006_Sell_Sheet.pdf

Specifications

Brand:
HES
Box Depth (in):
1-11/16"
Box Height (in):
4-7/8"
Application:
For Mortise or Cylindrical Locksets having 3/4" Latch and 1" Deadbolt Throw
Electronic:
No
Current:
450 mA @ 12 VDC, 250 mA @ 24 VDC Current
Certification:
ANSI A156.31, Grade 1, UL 1034, UL 10C
FS/FSE Mode:
Fail Secure
Includes:
J, K, N, A, H, T Options, Plug-In Connector
Finish:
630/US32D
Finish Description:
Satin Stainless Steel
Dynamic Impact Strength:
350 foot-pounds
Fire Rated:
3 Hours {A}
Door Handing:
Non-handed
Base Material:
Stainless Steel
Interior/Exterior:
Interior/Exterior
Grade:
Grade 1
Commercial Residential:
Commercial
Specifications Bullet 3:
Includes J, K, N, A, H, T Options, Plug-In Connector
Country Of Origin:
USA
Parent Manufacturer:
Assa Abloy
Dimensions:
1-1/4" x 4-7/8"
Box Width (in):
1-1/4"
Specifications Bullet 2:
For Mortise or Cylindrical Locksets having 3/4" Latch and 1" Deadbolt Throw
Specifications Bullet 6:
Fail Secure
Latch Throw (in):
1"
Specifications Bullet 8:
Accepts 1" Latch Throw
Selling Quantity:
1
Door Range (Thickness):
-
Specifications Bullet 1:
12/24 VDC Voltage Electric Strike
Specifications Bullet 7:
1-1/4" x 4-7/8" Unit Dimension
Specifications Bullet 10:
5 Year Warranty
Specifications Bullet 4:
3000 lbs Static Holding Strength
Product Warranty:
5 Year Warranty
Specifications Bullet 5:
450 mA @ 12 VDC, 250 mA @ 24 VDC Current
Frame Material:
Metal/Wood
Specifications Bullet 9:
ANSI A156.31, Grade 1, UL 1034, UL 10C
UOM:
1
Manufacturer:
HES
Voltage:
12/24 VDC Voltage
Static Holding Strength (lbs):
3000
Strike Dimensions:
1-1/4" x 4-7/8"
Series:
1006 Series Electric Strikes
Uid:
HAN1001006CS630
Url Title:
1006cs-630
Title:
1006CS-630 HES Electric Strike
Type:
Electric Strikes, Bolts, Magnets
Sub Type:
Electric Strikes
Last Modified:
2024-02-03T05:01:26+00:00
Last Pricing:
2023-04-17T00:00:00+00:00
Msrp:
840
Avg Lead Time:
10
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
2.4
Pack Length:
10.5
Pack Width:
3.375
Pack Height:
2.25
Pack Volume:
79.734375
Baa Qualified:
Yes
Limited Warranty:
5 Years
Unit Of Measure:
Each
Vendor:
Assa Abloy
Assembly Item:
1

Warranty Information

5 Year Warranty
