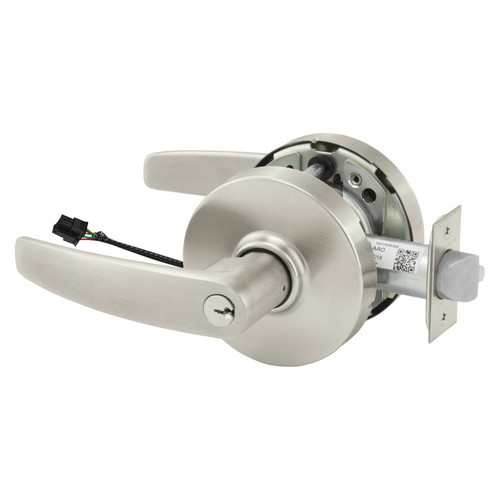

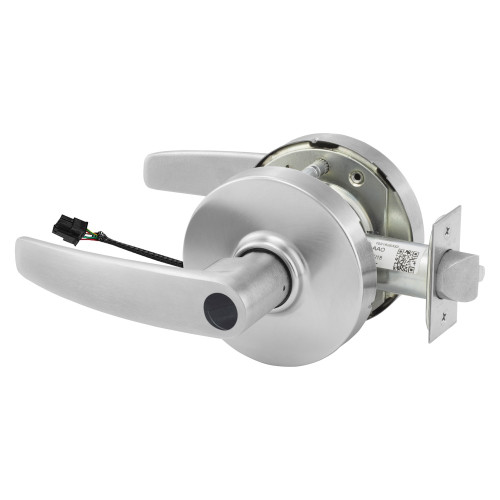

Sargent 28-10G71-24V LB 26D Electrified Cylindrical Lock Fail Secure 24V LB Design Satin Chrome

Sargent

Write a Review
SKU:
28-10G71-24V LB 26D
$850.81
Sargent 28-10G71-24V LB 26D Electrified Cylindrical Lock Fail Secure 24V LB Design Satin Chrome
$850.81

Descriptions

The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog10 Line Cylindrical Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_10_Line_Cylindrical_Lock_Catalog.pdf
installation-instructions10G70 & 10G71 Electro-Mechanical Bored Lock for 1 3/4" door w/ ElectroLynx Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6761C.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf

Specifications

Brand:
Sargent
Series:
10G70/71 Series Electrified Lever Locks
Parent Manufacturer:
Assa Abloy
Manufacturer:
Sargent
Backset (in):
2-3/4"
ADA:
Yes
Can Be Keyed:
Yes
Bore Hole Diameter (in):
2-1/8"
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Country Of Origin:
USA
Base Material:
Brass or Bronze
Door Range (Thickness):
1-3/4" - 2"
Finish:
626/US26D
Door Handing:
Non-handed
Finish Description:
Satin Chrome
Cylinder Type:
Conventional
Keyway:
LA Keyway
Grade:
Grade 1
FS/FSE Mode:
Fail Secure
Includes Cylinder(s)?:
Yes
Function:
Electronically Locked Storeroom
Latch Description:
Dead Latch
Latch Number:
10-2000
Lever/Knob/Pull:
Lever
Latch Throw (in):
1/2"
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 3:
Conventional LA Keyway
Lever/Knob/Pull Design:
B
Specifications Bullet 2:
B Lever
Specifications Bullet 1:
Grade 1 Electrified Electronically Locked Storeroom Function Cylindrical Lockset
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 6:
12/24 VDC Voltage Fail Secure
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 9:
1/2" Latch Throw
Specifications Bullet 8:
3-1/2" Rose Dimension
Specifications Bullet 13:
Includes Wood/Metal Screws
Specifications Bullet 12:
2-1/8" Bore Hole Diameter
Specifications Bullet 10:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 11:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 14:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Maximum Door Thickness (in):
2"
Specifications Bullet 15:
7 Year Warranty
Product Warranty:
7 Year Warranty
Projection (in):
2-1/2"
Minimum Door Thickness (in):
1-3/4"
Uid:
SAR1002810G7124VLB26D
Url Title:
28-10g71-24v-lb-26d
Title:
28-10G71-24V LB 26D Sargent Electric Cylindrical Lock
Type:
Electric Locks
Sub Type:
Electric Cylindrical Lock
Last Modified:
2023-02-13T08:25:05+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1235
Avg Lead Time:
25
Popularity:
5
Pack Weight:
4
Pack Length:
8.25
Pack Width:
7.125
Pack Height:
4.25
Pack Volume:
249.8203125
Baa Qualified:
Yes
Limited Warranty:
7 Years
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
10
Assembly Item:
1

Warranty Information

7 Year Warranty
