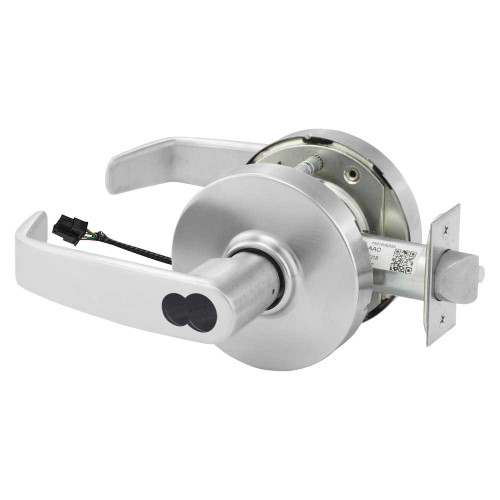

Sargent 2860-10G71-24V LL 26D Electrified Cylindrical Lock Fail Secure 24V LL Design LFIC Prep Less Core Satin Chrome

Sargent

Write a Review
SKU:
2860-10G71-24V LL 26D
$850.81
Sargent 2860-10G71-24V LL 26D Electrified Cylindrical Lock Fail Secure 24V LL Design LFIC Prep Less Core Satin Chrome
$850.81

Descriptions

The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
catalog10 Line Cylindrical Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_10_Line_Cylindrical_Lock_Catalog.pdf
installation-instructions10G70 & 10G71 Electro-Mechanical Bored Lock for 1 3/4" door w/ ElectroLynx Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6761C.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf

Specifications

Brand:
Sargent
Country Of Origin:
USA
Product Warranty:
7 Year Warranty
Series:
10G70/71 Series Electrified Lever Locks
ADA:
Yes
Finish Description:
Satin Chrome
Base Material:
Brass or Bronze
Specifications Bullet 8:
3-1/2" Rose Dimension
Keyway:
Less Core
Door Range (Thickness):
1-3/4" - 2"
Specifications Bullet 7:
2-1/2" Projection
Voltage:
12/24 VDC Voltage
Grade:
Grade 1
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 1:
Grade 1 Electrified Electronically Locked Storeroom Function Cylindrical Lockset
Latch Number:
10-2000
Specifications Bullet 6:
12/24 VDC Voltage Fail Secure
Manufacturer:
Sargent
Rose/Escutcheon Design:
L
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 9:
1/2" Latch Throw
Strike Description:
ASA Strike
Specifications Bullet 11:
For Doors 1-3/4" - 2" Thick
Function:
Electronically Locked Storeroom
Rose/Escutcheon Dimensions (in):
3-1/2"
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon:
Rose
Specifications Bullet 14:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 2:
L Lever
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 15:
7 Year Warranty
Projection (in):
2-1/2"
Cylinder Type:
LFIC Housing
Latch Description:
Dead Latch
Strike Number:
808
Specifications Bullet 13:
Includes Wood/Metal Screws
Screw Pack:
Wood/Metal Screws
Backset (in):
2-3/4"
FS/FSE Mode:
Fail Secure
Finish:
626/US26D
Specifications Bullet 10:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 12:
2-1/8" Bore Hole Diameter
Can Be Keyed:
Yes
Door Handing:
Non-handed
Parent Manufacturer:
Assa Abloy
Lever/Knob/Pull Design:
L
Includes Cylinder(s)?:
No
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 4:
2-3/4" Backset
Minimum Door Thickness (in):
1-3/4"
Maximum Door Thickness (in):
2"
Latch Throw (in):
1/2"
Lever/Knob/Pull:
Lever
Uid:
SAR100286010G7124VLL26D
Url Title:
2860-10g71-24v-ll-26d
Title:
2860-10G71-24V LL 26D Sargent Electric Cylindrical Lock
Type:
Electric Locks
Sub Type:
Electric Cylindrical Lock
Last Modified:
2023-02-13T07:40:54+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1235
Avg Lead Time:
30
Popularity:
3
Pack Weight:
4
Pack Length:
8.25
Pack Width:
7.125
Pack Height:
4.25
Pack Volume:
249.8203125
Baa Qualified:
Yes
Limited Warranty:
7 Years
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
10

Warranty Information

7 Year Warranty
