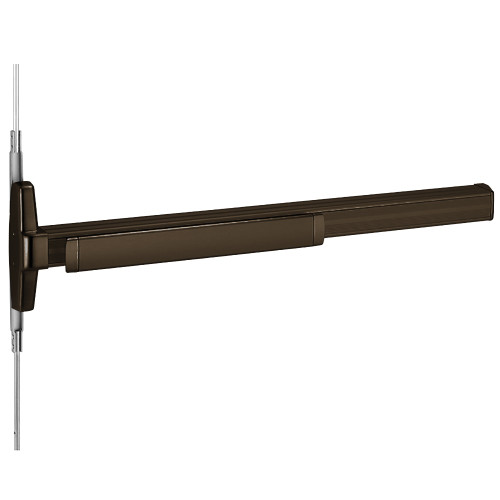

  • Von Duprin 3347AEO-F 3 313 Grade 1 Concealed Vertical Rod Exit Device Narrow Stile Pushpad Exit Only Less Trim 36 Less Dogging Dark Bronze Anodized Aluminum Finish Non-Handed

Von Duprin 3347AEO-F 3 313 Grade 1 Concealed Vertical Rod Exit Device Narrow Stile Pushpad Exit Only Less Trim 36 Less Dogging Dark Bronze Anodized Aluminum Finish Non-Handed

Von Duprin

Write a Review
SKU:
3347AEO-F 3 313
$2,227.42
Von Duprin 3347AEO-F 3 313 Grade 1 Concealed Vertical Rod Exit Device Narrow Stile Pushpad Exit Only Less Trim 36 Less Dogging Dark Bronze Anodized Aluminum Finish Non-Handed
$2,227.42

Descriptions

3347A and 3547A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3347A/3547A fits door stiles as narrow as 1 3/4"(44 mm), wood door stiles as narrow as 4"(102mm). Newly designed device has a one piece center case cover. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'. Hex key dogging standard. Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6'8" to 8'4".
TypeTitleURL
brochure/sales-materialVon Duprin Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/vonduprin/miscellaneous/ALLEGION_finish-chart.pdf
data-sheetEL for Exit Devices Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/Von_Duprin_EL_for_Exit_Devices_Data_Sheet_110105.pdf
QEL Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/106586.pdf
installation-instructions372L-DT Control for 33/3547/47-F Metal Door Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/Von_Duprin_372L-DT_Control_for_33_3547_47-F_Metal_Door_Installation_Instructions_107741.pdf
Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107710.pdf
Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109265.pdf
Von Duprin 33/3547A/48A Bottom Rod Assembly Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109258.pdf
Von Duprin 33/3547A/48A Top Rod Assembly Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109257.pdf
Von Duprin 33/99 LD Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109278.PDF
Von Duprin 3347A/3547A Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107609.pdf
miscellaneousQuiet Electric Latch FAQhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/110624.pdf
price-book2024 Von Duprin Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/vonduprin/pricebooks/VON_pricebook_3-2024.pdf
sell-sheetQEL Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/103226.pdf
Von Duprin Exit Alarm Kit Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/105255.pdf
service-manualVon Duprin 33/3547A Service Manualhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/common-part-manuals/105676.pdf

Specifications

Brand:
Von Duprin
Series:
3347A Series Concealed Vertical Rod Exit Device
Manufacturer:
Von Duprin
Base Material:
Aluminum
Commercial Residential:
Commercial
Dogging Option:
Hex Key Dogging
Door Height (in):
100"
Door Material:
Hollow Metal
Finish:
313
Finish Description:
Dark Bronze Anodized Aluminum
Fire Rated:
3 Hours {A}
Grade:
Grade 1
Includes Cylinder(s)?:
No
Minimum Stile (in):
Narrow
Sub-Type:
Concealed Vertical Rod Exit Devices
Type:
Exit Devices
Uid:
VON1003347AEOF3313
Url Title:
3347a-eo-f-3-313
Title:
3347AEO-F 3 313 Von Duprin Exit Device
Sub Type:
Concealed Vertical Rod Exit Devices
Last Modified:
2023-09-27T07:41:29+00:00
Last Pricing:
2024-02-29T00:00:00+00:00
Msrp:
3190
Avg Lead Time:
107
Finish Family:
Dark Bronze
Popularity:
9
Pack Weight:
16
Ul Listing:
UL Listed
Ansi Code:
A156.3 2008
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
3
Vendor:
Allegion
