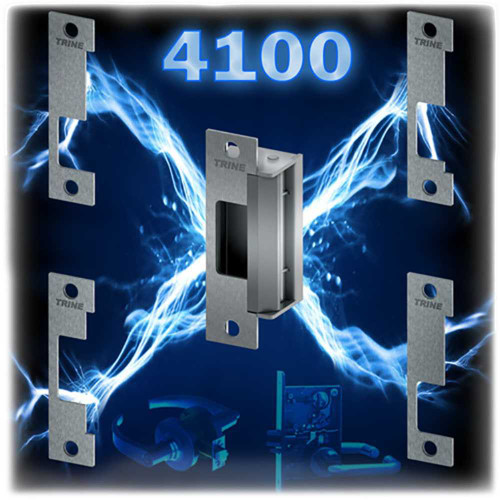

Trine 4100RS US32D 4100 Series Electric Strike 12/24VDC 12-24VAC Fail Safe 4 4-7/8 x 1-1/4 Faceplates for Cylindrical and Mortise Locks Satin Stainless Steel

Trine

Write a Review
SKU:
4100RS US32D
$422.65
Trine 4100RS US32D 4100 Series Electric Strike 12/24VDC 12-24VAC Fail Safe 4 4-7/8 x 1-1/4 Faceplates for Cylindrical and Mortise Locks Satin Stainless Steel
$422.65

Descriptions

The 4100 Electric strike for cylindrical and mortise locks. The 4100 strike has 1034 burglury rating with 3250 lbs of holding force. Over 1,000,000 life cylcle testing and 4 faceplates which covers 90% of all cylidrical and mortise locks
TypeTitleURL
catalog05 Cataloghttps://dvwi9lnoau63q.cloudfront.net/trine/catalog/05.pdf
06 Cataloghttps://dvwi9lnoau63q.cloudfront.net/trine/catalog/06.pdf
07 Cataloghttps://dvwi9lnoau63q.cloudfront.net/trine/catalog/07.pdf
cut-sheet4100 Electric Strike Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/trine/datasheet/4100_electric_strike_cutsheet_2012.pdf
datasheet4100 Metal Frame Prepshttps://dvwi9lnoau63q.cloudfront.net/trine/datasheet/4100_metal.pdf
4100 Metal Frame Preps for MLOhttps://dvwi9lnoau63q.cloudfront.net/trine/datasheet/4100_metal_mlo.pdf
4100 Wood Frame Prepshttps://dvwi9lnoau63q.cloudfront.net/trine/datasheet/4100_wood.pdf
4100rx-250 Metal Frame Prepshttps://dvwi9lnoau63q.cloudfront.net/trine/datasheet/4100rx-250-metal.pdf
dimensions4100 Dimensionshttps://dvwi9lnoau63q.cloudfront.net/trine/dimensions/4100_dimm.pdf
cc9 Dimensionshttps://dvwi9lnoau63q.cloudfront.net/trine/dimensions/cc9.pdf
ccrd Dimensionshttps://dvwi9lnoau63q.cloudfront.net/trine/dimensions/ccrd.pdf
crd7 Dimensionshttps://dvwi9lnoau63q.cloudfront.net/trine/dimensions/crd7.pdf
crd8 Dimensionshttps://dvwi9lnoau63q.cloudfront.net/trine/dimensions/crd8.pdf
instructions4100 Instructionshttps://dvwi9lnoau63q.cloudfront.net/trine/instructions/4100_instructions.pdf
price-book2023 Trine Price Book (effective 4.28.2023)https://dvwi9lnoau63q.cloudfront.net/trine/pricebooks/TRINE_pricebook_4-2023.pdf

Specifications

Brand:
Trine
Base Material:
Stainless Steel
Frame Material:
Metal
Current:
240mA @ 12 VDC Current
Parent Manufacturer:
Not Applicable
Commercial Residential:
Commercial
Includes:
4-Faceplates, Trim Skirt, Shims, Torx Screws
Dynamic Impact Strength:
70 foot-pounds
Box Width (in):
1-5/8"
Finish:
630/US32D
Specifications Bullet 9:
Class A, UL 10C, UBC 7-2
Electronic:
No
Interior/Exterior:
Interior/Exterior
Finish Description:
Satin Stainless Steel
Grade:
Grade 1
Box Height (in):
4-7/80"
Country of Origin:
United States
Door Handing:
Non-handed
Box Depth (in):
1-3/8"
Latch Throw (in):
5/8"
Specifications Bullet 4:
3250 lbs Static Holding Strength
Dimensions:
1-5/8" x 4-3/32"
Fire Rated:
3 Hours {A}
Specifications Bullet 5:
240mA @ 12 VDC Current
Specifications Bullet 2:
For Cylindrical and Mortise Locksets without Deadbolt
Specifications Bullet 10:
1 Year Warranty
Certification:
Class A, UL 10C, UBC 7-2
Specifications Bullet 1:
12 VDC Voltage Electric Strike
Specifications Bullet 7:
1-5/8" x 4-3/32" Unit Dimension
Specifications Bullet 8:
Accepts 5/8" Latch Throw
Door Range (Thickness):
-
Specifications Bullet 3:
Includes 4-Faceplates, Trim Skirt, Shims, Torx Screws
Resistance (Olm):
50. Ohms @ 12 VDC
Static Holding Strength (lbs):
3250
Selling Quantity:
1
UOM:
1
Specifications Bullet 6:
Fail Safe
Voltage:
12 VDC Voltage
FS/FSE Mode:
Fail Safe
Manufacturer:
Trine
Armor Front Dimensions:
1-5/8" x 4-7/8"
Application:
For Cylindrical and Mortise Locksets without Deadbolt
Product Warranty:
1 Year Warranty
Series:
4100 Series Electric Strikes
Uid:
TRI1004100RSUS32D
Url Title:
4100rs-us32d
Title:
4100RS US32D Trine Electric Strike
Type:
Electric Strikes, Bolts, Magnets
Sub Type:
Electric Strikes
Last Modified:
2024-02-03T05:12:10+00:00
Last Pricing:
2023-04-28T00:00:00+00:00
Msrp:
575
Avg Lead Time:
9
Finish Family:
Matte Silver
Popularity:
3
Limited Warranty:
1 Year
Unit Of Measure:
Each
Vendor:
Trine Access Technology

Warranty Information

1 Year Warranty
