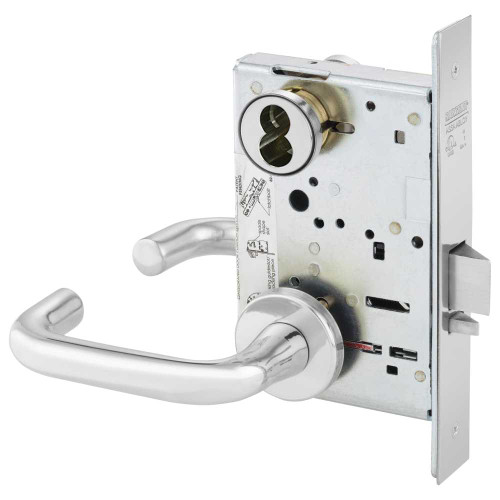

Sargent 60-8238 LNJ 26D Classroom Security Intruder Mortise Lock LN Rose J Lever LFIC Prep Less Core Satin Chrome

Sargent

Write a Review
SKU:
60-8238 LNJ 26D
$861.55
Sargent 60-8238 LNJ 26D Classroom Security Intruder Mortise Lock LN Rose J Lever LFIC Prep Less Core Satin Chrome
$861.55

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
ADA:
Yes
Armor Front Dimensions:
1-1/4" x 8"
Parent Manufacturer:
Assa Abloy
Manufacturer:
Sargent
Series:
8200 Line Lever Mortise Locks
Commercial/Residential:
Commercial
Can Be Keyed:
Yes
Base Material:
Brass or Bronze
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Backset (in):
2-3/4"
Country Of Origin:
USA
Cylinder Type:
Mortise LFIC Housing
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-3/4"
Deadbolt Throw (in):
Not Applicable
Finish Description:
Satin Chrome
Finish:
626/US26D
Function:
Classroom Security Intruder
Fire Rated:
2 Hours {B}
Electronic:
No
Interior/Exterior:
Interior/Exterior
Includes Cylinder(s)?:
No
Keyway:
Less Core
Latch Description:
Dead Latch
Grade:
Grade 1
Latch Dimensions:
1-1/4" x 8"
Latch Throw (in):
3/4"
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
J
Specifications Bullet 1:
Grade 1 Classroom Security Intruder Function Mortise Lockset
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 2:
J Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
LN Rose
Specifications Bullet 7:
2-13/16" Projection
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 8:
2-1/8" Rose Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 14:
10 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 12:
For Doors 1-3/4" Thick
Maximum Door Thickness (in):
1-3/4"
Projection (in):
2-13/16"
Rose/Escutcheon:
Rose
Pocket Dimensions:
6-5/8" x 4-1/2"
Pocket Depth (in):
6-5/8" x 4-1/2"
Product Warranty:
10 Year Warranty
Rose/Escutcheon Design:
LN
Rose/Escutcheon Dimensions (in):
2-1/8"
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Selling Quantity:
1
Strike Number:
82-0110
UOM:
1
Uid:
SAR100608238LNJ26D
Url Title:
60-8238-lnj-26d
Title:
60-8238 LNJ 26D Sargent Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T10:28:55+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1213
Popularity:
8
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
