  • Home
  • Locksets
  • Sargent 70-8204 OL 26D Storeroom or Closet Mortise Lock O Rose L Lever SFIC Prep Less Core Satin Chrome

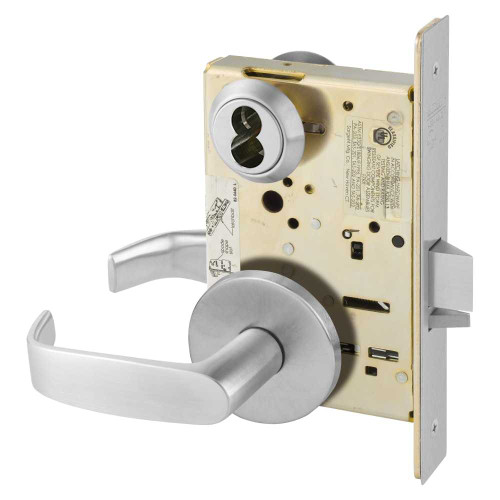

Sargent 70-8204 OL 26D Storeroom or Closet Mortise Lock O Rose L Lever SFIC Prep Less Core Satin Chrome

Sargent

Write a Review
SKU:
70-8204 OL 26D
$0.00
Sargent 70-8204 OL 26D Storeroom or Closet Mortise Lock O Rose L Lever SFIC Prep Less Core Satin Chrome
$0.00

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
ADA:
Yes
Parent Manufacturer:
Assa Abloy
Series:
8200 Line Lever Mortise Locks
Armor Front Dimensions:
1-1/4" x 8"
Manufacturer:
Sargent
Commercial/Residential:
Commercial
Base Material:
Brass or Bronze
Backset (in):
2-3/4"
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Can Be Keyed:
Yes
Cylinder Type:
Mortise SFIC Housing
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-3/4"
Country Of Origin:
USA
Deadbolt Throw (in):
Not Applicable
Finish Description:
Satin Chrome
Function:
Storeroom
Fire Rated:
2 Hours {B}
Electronic:
No
Finish:
626/US26D
Includes Cylinder(s)?:
No
Grade:
Grade 1
Keyway:
Less Core
Interior/Exterior:
Interior/Exterior
Latch Description:
Dead Latch
Latch Throw (in):
3/4"
Lever/Knob/Pull:
Lever
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Lever/Knob/Pull Design:
L
Latch Dimensions:
1-1/4" x 8"
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 2:
L Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
O Rose
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 7:
2-3/8" Projection
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 8:
2-3/4" Rose Dimension
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 14:
10 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon:
Rose
Pocket Depth (in):
6-5/8" x 4-1/2"
Product Warranty:
10 Year Warranty
Projection (in):
2-3/8"
Pocket Dimensions:
6-5/8" x 4-1/2"
Selling Quantity:
1
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
O
Rose/Escutcheon Dimensions (in):
2-3/4"
UOM:
1
Strike Number:
82-0110
Uid:
SAR100708204OL26D
Url Title:
70-8204-ol-26d
Title:
70-8204 OL 26D Sargent Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T08:50:51+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1245
Popularity:
8
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
