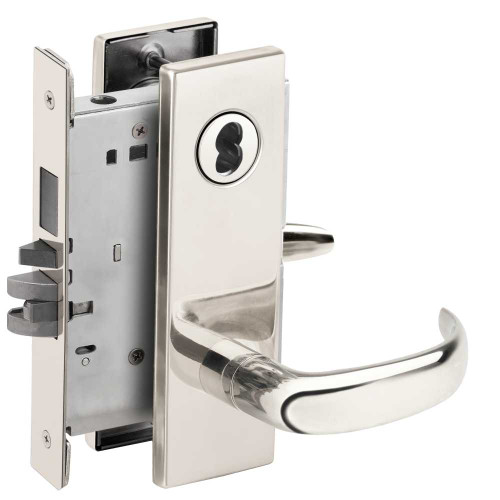

Schlage L9453B 17L 625 Schlage L-Series Entrance Mortise Lock L Decorative Escutcheon 17 Lever Grade 1 Mortise Lock SFIC Prep Less Core Bright Chrome

Schlage

Write a Review
SKU:
L9453B 17L 625
$876.49
UPC:
840067648780
$876.49

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Parent Manufacturer:
Allegion
Backset (in):
2-3/4"
ADA:
Yes
Manufacturer:
Schlage
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Commercial Residential:
Commercial
Armor Front Dimensions:
1-1/4" x 8"
Base Material:
Brass Bronze
Can Be Keyed:
Yes
Series:
L9000 Series Mortise Lock
Finish Description:
Bright Chrome
Cylinder Type:
Mortise SFIC Housing
Electronic:
No
Deadbolt Throw (in):
1"
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish:
625/US26
Fire Rated:
3 Hours {A}
Function:
Entrance with Deadbolt
Country Of Origin:
Mexico
Door Handing:
Non-handed
Includes Cylinder(s)?:
No
Keyway:
Less Core
Interior/Exterior:
Interior/Exterior
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
17
Latch Description:
Dead Latch
Latch Dimensions:
1-1/4" x 8"
Grade:
Grade 1
Specifications Bullet 1:
Grade 1 Entrance with Deadbolt Function Mortise Lockset
Lever/Knob/Pull:
Lever
Specifications Bullet 8:
1-3/4" x 7-15/16" Escutcheon Dimension
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 10:
3/4" Dead Latch
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 7:
3" Projection
Specifications Bullet 9:
1" Deadbolt Throw
Specifications Bullet 11:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 2:
17 Lever
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 4:
L Escutcheon
Projection (in):
3"
Product Warranty:
10 Year Warranty
Specifications Bullet 12:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 13:
For Doors 1-3/4" Thick
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 15:
10 Year Warranty
Specifications Bullet 14:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Rose/Escutcheon:
Escutcheon
Maximum Door Thickness (in):
1-3/4"
Pocket Dimensions:
6-5/8" X 4-1/2"
Rose/Escutcheon Dimensions (in):
1-3/4" x 7-15/16"
Selling Quantity:
1
UOM:
1
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067648780
Rose/Escutcheon Design:
L
Strike Number:
10-072
Uid:
SCH100L9453BD17L625
Url Title:
l9453bd-17l-625
Title:
L9453BD 17L 625 Schlage Lock Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T06:34:46+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1280
Popularity:
9
Pack Weight:
7
Pack Length:
10.25
Pack Width:
5.5
Pack Height:
5.5
Ansi Code:
F20 - Entry/Office
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
