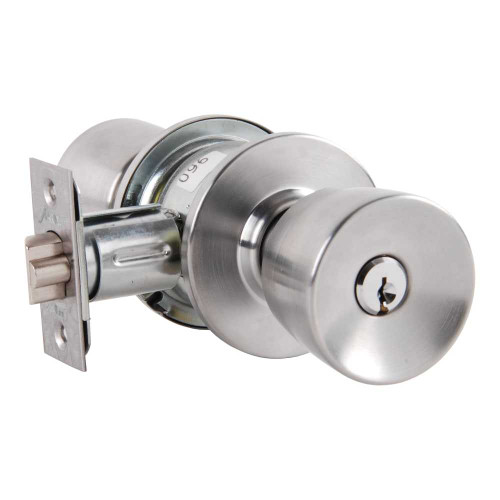

Arrow MK33-BD-26D Grade 2 Asylum Cylindrical Lock Ball Knob Conventional Cylinder Satin Chrome Finish Non-handed

Arrow

Write a Review
SKU:
MK33-BD-26D
$174.31
Arrow MK33-BD-26D Grade 2 Asylum Cylindrical Lock Ball Knob Conventional Cylinder Satin Chrome Finish Non-handed
$174.31

Descriptions

Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.
TypeTitleURL
cut-sheetMK Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/MKSeries.pdf
templateMK Series Dummy Knob Templatehttps://dvwi9lnoau63q.cloudfront.net/arrow/template/MK_Template_Dummy_1.pdf
MK Series Templatehttps://dvwi9lnoau63q.cloudfront.net/arrow/template/MK_Series_Template_1.pdf

Specifications

Brand:
Arrow
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 6:
1-1/8" x 2-3/4" T-Strike
Strike Description:
T-Strike
Specifications Bullet 12:
1 Year Warranty
Specifications Bullet 8:
2-9/16" Rose
Specifications Bullet 3:
Conventional A Keyway
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Lever/Knob/Pull:
Knob
Commercial Residential:
Commercial
Product Warranty:
1 Year Warranty
Fire Rated:
3 Hours {A}
Certification:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Can Be Keyed:
Yes
Country Of Origin:
Mexico
Grade:
Grade 2
Cylinder Type:
Conventional
Includes Cylinder(s)?:
Yes
Bore Hole Diameter (in):
2-1/8"
Latch Number:
114
Specifications Bullet 7:
3-1/8" Projection
Keyway:
A Keyway
Function:
Asylum
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 1:
Grade 2 Asylum Function Cylindrical Lockset
Specifications Bullet 2:
Ball Knob
Rose/Escutcheon:
Rose
Electronic:
No
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Finish:
626/US26D
Latch Throw (in):
1/2"
Door Handing:
Non-handed
Lever/Knob/Pull Design:
Ball
Parent Manufacturer:
Assa Abloy
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Finish Description:
Satin Chrome
Latch Description:
Dead Latch
Strike Dimensions:
1-1/8" x 2-3/4"
Latch Bore Diameter (in):
1"
Rose/Escutcheon Dimensions (in):
2-9/16"
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 2, UL Listed
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/8"
Selling Quantity:
1
UOM:
1
Rose/Escutcheon Design:
Not Applicable
Projection (in):
3-1/8"
Backset (in):
2-3/4"
Series:
MK Series Grade 2 Cylindrical Knob Locks
Strike Number:
300
Manufacturer:
Arrow
Base Material:
Brass Bronze
ADA:
No

Warranty Information

1 Year Warranty
