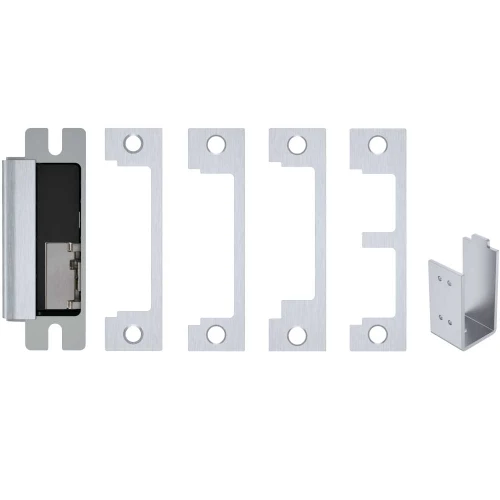

  • HES 1600-CDB-630 Grade 1 Electric Strike For Cylindrical or Mortise Latchbolt and Deadbolt Locks Auto-Sensing 12/24 VDC Field Selectable Fail Safe/Fail Secure Includes 1N 1ND 1NM 1NTD Options Satin Stainless Steel

HES 1600-CDB-630 Grade 1 Electric Strike For Cylindrical or Mortise Latchbolt and Deadbolt Locks Auto-Sensing 12/24 VDC Field Selectable Fail Safe/Fail Secure Includes 1N 1ND 1NM 1NTD Options Satin Stainless Steel

HES

Write a Review
SKU:
1600-CDB-630
$413.31
HES 1600-CDB-630 Grade 1 Electric Strike For Cylindrical or Mortise Latchbolt and Deadbolt Locks Auto-Sensing 12/24 VDC Field Selectable Fail Safe/Fail Secure Includes 1N 1ND 1NM 1NTD Options Satin Stainless Steel
$413.31

Descriptions

The HES 1600 Series heavy duty electric strike is the most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks. It accommodates up to a 1" deadbolt with enhanced vertical cavity spacing and will accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.
TypeTitleURL
brochure/sales-materialAA ESH Electric Strike Overviewhttps://dvwi9lnoau63q.cloudfront.net/hes/literature/ESH_Electric_Strike_Overview_Brochure.pdf
catalog2021 HES/Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/hes/catalog/ASSA_ABLOY_ESH_Catalog.pdf
installation-instructionsVideo: 1600 Series Electric Strike Installationhttps://youtu.be/FkcOHXfTXLA
literatureHES 1600 Series Strike - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/hes/product-guide/143.1_ASSA_ABLOY_EPD_HES_1600_Electric_Strike_EPD_8.17.17.pdf
price-book2023 HES Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/hes/pricebooks/HES_pricebook_11-2023.pdf
product-guideElectric Strike Selector Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/Electric_Strike_Selector_Guide.pdf
HES Electric Strikes for Every Lockset Applicationhttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HES_guide_slectric-strikes.pdf
sell-sheetHES 1500/1600 Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/hes/sell-sheet/ESH_15001600_Brochure_Final_2.pdf

Specifications

Brand:
HES
Product Warranty:
5 Year Warranty
Door Handing:
Non-handed
Electronic:
No
FS/FSE Mode:
Fail Safe / Fail Secure
Interior/Exterior:
Exterior
Specifications Bullet 10:
5 Year Warranty
Country of Origin:
United States
Finish:
630/US32D
Commercial Residential:
Commercial
UOM:
1
Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 4:
1500 lbs Static Holding Strength
Frame Material:
Metal/Wood
Box Depth (in):
1-3/8"
Specifications Bullet 9:
ANSI A156.31, Grade 1, UL 1034, UL 10C
Specifications Bullet 3:
Includes 1DB Faceplate Options, Plug-In Connector
Manufacturer:
HES
Latch Throw (in):
1"
Certification:
ANSI A156.31, Grade 1, UL 1034, UL 10C
Grade:
Grade 1
Specifications Bullet 7:
1-1/4" x 4-7/8" Unit Dimension
Specifications Bullet 5:
240mA @ 12 VDC, 120mA @ 24 VDC Current
Static Holding Strength (lbs):
1500
Selling Quantity:
1
Specifications Bullet 6:
Fail Safe / Fail Secure
Specifications Bullet 8:
Accepts 1" Latch Throw
Specifications Bullet 2:
For Mortise or Cylindrical Locksets having 3/4" Latch and 1" Deadbolt Throw
Application:
For Mortise or Cylindrical Locksets having 3/4" Latch and 1" Deadbolt Throw
Series:
1600 Series Electric Strikes
Current:
240mA @ 12 VDC, 120mA @ 24 VDC Current
Door Range (Thickness):
-
Dynamic Impact Strength:
70 foot-pounds
Parent Manufacturer:
Assa Abloy
Voltage:
12/24 VDC Voltage
Specifications Bullet 1:
12/24 VDC Voltage Electric Strike
Base Material:
Stainless Steel
Fire Rated:
3 Hours {A}
Box Height (in):
4-7/8"
Box Width (in):
1-1/4"
Includes:
1DB Faceplate Options, Plug-In Connector
Finish Description:
Satin Stainless Steel
Strike Dimensions:
1-1/4" x 4-7/8"
Uid:
HAN1001600CDB630
Url Title:
1600-cdb-630
Title:
1600-CDB-630 HES Electric Strike
Type:
Electric Strikes, Bolts, Magnets
Sub Type:
Electric Strikes
Last Modified:
2024-02-03T05:04:56+00:00
Last Pricing:
2023-04-17T00:00:00+00:00
Msrp:
639
Avg Lead Time:
19
Finish Family:
Matte Silver
Popularity:
5
Limited Warranty:
1 Year
Unit Of Measure:
EACH
Vendor:
Assa Abloy
Assembly Item:
1

Warranty Information

5 Year Warranty
