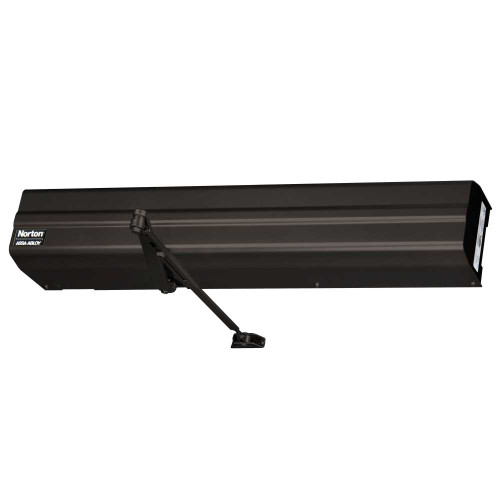

Norton 5730 690 Low Energy Surface Mounted Electrohydraulic Door Operator Double Lever Arm Regular Push Side Mounted Top Jamb 29 - 36 Door 170 Deg Swing Dark Bronze Painted Finish

Norton

Write a Review
SKU:
5730 690
$3,034.79
Norton 5730 690 Low Energy Surface Mounted Electrohydraulic Door Operator Double Lever Arm Regular Push Side Mounted Top Jamb 29 - 36 Door 170 Deg Swing Dark Bronze Painted Finish
$3,034.79

Descriptions

A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated manually but can also be activated via wall switches for automatic operation. The 5700 offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
TypeTitleURL
brochure/sales-materialNorton Rixson Low Energy Operator Brochurehttps://dvwi9lnoau63q.cloudfront.net/norton/brochures/NOR_brochure_low-energy-ops_11-23.pdf
catalog2021 Norton Operators Cataloghttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/Norton_Operators_Catalog.pdf
5700 Low Energy Operatorhttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/43100_NOR_5700.pdf
5700 Series Operator Cataloghttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/Norton_5700_Series_Operator_Catalog.pdf
installation5700 Series Operator, Pull Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0004-020.pdf
5700 Series Operator, Push Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0005-020.pdf
5700P Series Operator with Optional Plug-In Power Input, Pull Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0006-020.pdf
5700P Series Operator with Optional Plug-In Power Input, Push Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0007-020.pdf
literature5700 Series Swinging Door Operator - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/norton/literature/156.1_ASSA_ABLOY_mrEPD_Swinging_door_operator_Norton_5700_Series.pdf
price-books2023 Norton Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/norton/pricebooks/NOR_RIX_pricebook_4-2023.pdf
sell-sheetNorton Touchless Environments Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/norton/sell-sheet/Norton_Touchless_Environments_Sell_Sheet.pdf
touchless-electrical-solutionsNorton Low Energy Operators Brochurehttps://dvwi9lnoau63q.cloudfront.net/norton/brochures/Norton_Low_Energy_Door_Operators_Brochure.pdf
wiring-diagrams5700 Series Operator 5700 x 2 Actuatorshttps://dvwi9lnoau63q.cloudfront.net/norton/wiring-diagram/120909_5700_x_2_Actuators.pdf
5700 Series Operator 5700 x RFhttps://dvwi9lnoau63q.cloudfront.net/norton/wiring-diagram/120908_5700_x_RF.pdf
wiring-instructions5710, 5730, 5740, Push or Pull Side Mounting (5700 Series)https://dvwi9lnoau63q.cloudfront.net/norton/wiring-instructions/80-9357-0001-020.pdf

Specifications

Brand:
Norton
Commercial Residential:
Commercial
Interior/Exterior:
Interior/Exterior
Certification:
ANSI A156.4, A156.19, Grade 1, UL Listed, ADA
Finish Description:
Dark Bronze Painted
Grade:
Grade 1
Body Base Material:
Cast Aluminum
Specifications Bullet 4:
120 VAC 60Hz Input
Cover Material:
Metal
Arm Type:
Double Lever Arm
Application:
For use with Interior Doors up to 48"
Specifications Bullet 3:
For use with Interior Doors up to 48"
Specifications Bullet 5:
24 VDC Output @ 1.1A
LED Indicators:
No
Base Material:
Varies
Electronic:
No
Specifications Bullet 1:
Push Side Mount Power Operator
Hold Open:
Yes
Onboard Diagnostics:
No
Series:
5700 Series Operators
Door Handing:
Non-handed
Door Range (Thickness):
-
ADA:
Yes
Input Power:
120 VAC 60Hz Input
Specifications Bullet 8:
29" x 5-1/4" Unit Dimension
Size:
Size 3-6
Degree Swing:
110 to 170 Degree
Specifications Bullet 7:
2-5/8" to 6-3/4" Reveal
Product Warranty:
2 Year Warranty
Specifications Bullet 10:
Includes Machine Screws
Specifications Bullet 9:
200 lbs Maximum Door Weight
Specifications Bullet 12:
2 Year Warranty
Finish:
690/US20
Specifications Bullet 11:
ANSI A156.4, A156.19, Grade 1, UL Listed, ADA
Parent Manufacturer:
Assa Abloy
Includes:
Inverter
Screw Pack:
Machine Screws
Dimensions:
29" x 5-1/4"
Specifications Bullet 6:
SPDT Switch
Specifications Bullet 2:
Double Lever Arm
Maximum Door Weight (lbs):
200
Output:
24 VDC Output @ 1.1A
Switch Type:
SPDT Switch
Type:
Door Closers and Operators
Manufacturer:
Norton
Mount:
Push Side Mount
Mounting Detail:
2-5/8" to 6-3/4" Reveal
Onboard Power Supply:
Yes
Selling Quantity:
1
UOM:
1
Uid:
NOR5730690
Url Title:
5730-690
Title:
5730 690 Norton Door Operators
Sub Type:
Door Operators
Last Modified:
2023-02-26T05:26:00+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
4100
Avg Lead Time:
47
Finish Family:
Dark Bronze
Popularity:
3
Pack Weight:
20
Pack Length:
35
Pack Width:
9
Pack Height:
7
Pack Volume:
2205
Country Of Origin:
USA
Baa Qualified:
Yes
Limited Warranty:
2 Years
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

2 Year Warranty
