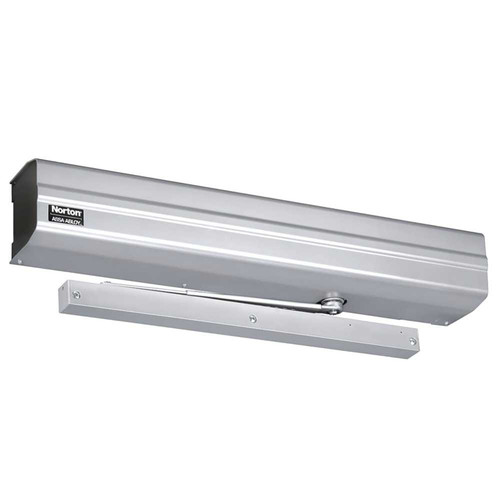

Norton 5740 689 Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit Operator Cover Push and Pull Arms Aluminum Painted Finish

Norton

Write a Review
SKU:
5740 689
$3,069.71
Norton 5740 689 Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit Operator Cover Push and Pull Arms Aluminum Painted Finish
UPC:
840067662335
$3,069.71

Descriptions

A reliable ADA solution comprising Norton's heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, ideal in applications where doors are typically operated manually but can also be activated via wall switches for automatic operation. The 5700 offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
TypeTitleURL
brochure/sales-materialNorton Rixson Low Energy Operator Brochurehttps://dvwi9lnoau63q.cloudfront.net/norton/brochures/NOR_brochure_low-energy-ops_11-23.pdf
catalog2021 Norton Operators Cataloghttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/Norton_Operators_Catalog.pdf
5700 Low Energy Operatorhttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/43100_NOR_5700.pdf
5700 Series Operator Cataloghttps://dvwi9lnoau63q.cloudfront.net/norton/catalogs/Norton_5700_Series_Operator_Catalog.pdf
installation5700 Series Operator, Pull Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0004-020.pdf
5700 Series Operator, Push Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0005-020.pdf
5700P Series Operator with Optional Plug-In Power Input, Pull Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0006-020.pdf
5700P Series Operator with Optional Plug-In Power Input, Push Side Mountedhttps://dvwi9lnoau63q.cloudfront.net/norton/installation/80-9357-0007-020.pdf
literature5700 Series Swinging Door Operator - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/norton/literature/156.1_ASSA_ABLOY_mrEPD_Swinging_door_operator_Norton_5700_Series.pdf
price-books2023 Norton Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/norton/pricebooks/NOR_RIX_pricebook_4-2023.pdf
sell-sheetNorton Touchless Environments Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/norton/sell-sheet/Norton_Touchless_Environments_Sell_Sheet.pdf
touchless-electrical-solutionsNorton Low Energy Operators Brochurehttps://dvwi9lnoau63q.cloudfront.net/norton/brochures/Norton_Low_Energy_Door_Operators_Brochure.pdf
wiring-diagrams5700 Series Operator 5700 x 2 Actuatorshttps://dvwi9lnoau63q.cloudfront.net/norton/wiring-diagram/120909_5700_x_2_Actuators.pdf
5700 Series Operator 5700 x RFhttps://dvwi9lnoau63q.cloudfront.net/norton/wiring-diagram/120908_5700_x_RF.pdf
wiring-instructions5710, 5730, 5740, Push or Pull Side Mounting (5700 Series)https://dvwi9lnoau63q.cloudfront.net/norton/wiring-instructions/80-9357-0001-020.pdf

Specifications

Brand:
Norton
Series:
5700 Series Operators
Certification:
ANSI A156.4, A156.19, Grade 1, UL Listed, ADA
Includes:
Inverter
Application:
For use with Interior Doors up to 48"
Door Handing:
Non-handed
ADA:
Yes
Country Of Origin:
USA
Electronic:
No
Finish Description:
Aluminum Painted
Cover Material:
Metal
Mount:
Universal Push or Pull Side Mount
Arm Type:
Slide Track Arm
Interior/Exterior:
Interior/Exterior
Selling Quantity:
1
Parent Manufacturer:
Assa Abloy
Dimensions:
29" x 5-1/4"
Specifications Bullet 5:
24 VDC Output @ 1.1A
Commercial Residential:
Commercial
Finish:
689/US28
Mounting Detail:
Not Applicable
Door Range (Thickness):
-
Hold Open:
Yes
Output:
24 VDC Output @ 1.1A
Input Power:
120 VAC 60Hz Input
Specifications Bullet 10:
ANSI A156.4, A156.19, Grade 1, UL Listed, ADA
Screw Pack:
Machine Screws
Specifications Bullet 6:
SPDT Switch
Specifications Bullet 9:
Includes Machine Screws
Specifications Bullet 11:
2 Year Warranty
Body Base Material:
Cast Aluminum
Onboard Diagnostics:
No
Specifications Bullet 8:
200 lbs Maximum Door Weight
Base Material:
Varies
Specifications Bullet 4:
120 VAC 60Hz Input
Specifications Bullet 3:
For use with Interior Doors up to 48"
Degree Swing:
110 to 170 Degree
LED Indicators:
No
Specifications Bullet 7:
29" x 5-1/4" Unit Dimension
UPC:
840067662335
Specifications Bullet 1:
Universal Push or Pull Side Mount Power Operator
Grade:
Grade 1
Onboard Power Supply:
Yes
Specifications Bullet 2:
Slide Track Arm
Maximum Door Weight (lbs):
200
Product Warranty:
2 Year Warranty
Size:
Size 3-6
UOM:
1
Switch Type:
SPDT Switch
Type:
Door Closers and Operators
Manufacturer:
Norton
Uid:
NOR5740689
Url Title:
5740-689
Title:
5740 689 Norton Door Operators
Sub Type:
Door Operators
Last Modified:
2023-02-28T05:09:58+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
4145
Avg Lead Time:
64
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
21
Pack Length:
35
Pack Width:
9
Pack Height:
7
Pack Volume:
2205
Baa Qualified:
Yes
Limited Warranty:
2 Years
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

2 Year Warranty
