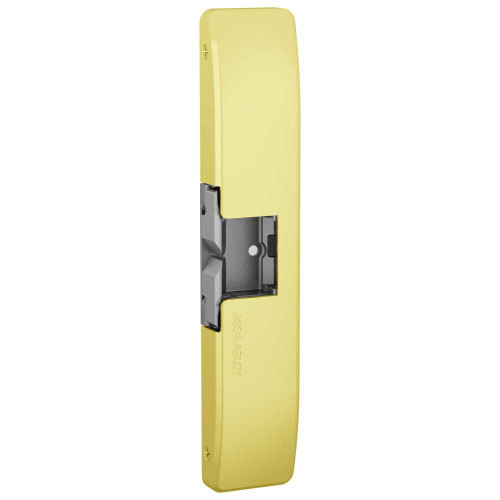

HES 9600-605 Grade 1 Electric Strike Fail Safe/Fail Secure 12/24 VDC Surface Mounted 3/4 Thickness Bright Brass Finish

HES

Write a Review
SKU:
9600-605
$458.58
HES 9600-605 Grade 1 Electric Strike Fail Safe/Fail Secure 12/24 VDC Surface Mounted 3/4 Thickness Bright Brass Finish
$458.58

Descriptions

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
TypeTitleURL
brochure/sales-materialAA ESH Electric Strike Overviewhttps://dvwi9lnoau63q.cloudfront.net/hes/literature/ESH_Electric_Strike_Overview_Brochure.pdf
catalog2021 HES/Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/hes/catalog/ASSA_ABLOY_ESH_Catalog.pdf
compatibility-chartHES Compatibility Charthttps://dvwi9lnoau63q.cloudfront.net/hes/compatibility-chart/HESCompatibilityChart2015.pdf
cross-reference-sheetHES Lock Cross Reference Charthttps://dvwi9lnoau63q.cloudfront.net/hes/cross-reference-sheet/HESLockCrossReference2015.pdf
dimensional-drawingHES 9600 Series Dimensional Drawingshttps://dvwi9lnoau63q.cloudfront.net/hes/dimensional-drawing/HES9600DimensionalDrawings.pdf
installation-guideHES 9400/9500/9600 Electric Strike Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/installation-guide/AADSS1053638_1.pdf
HES 9600 Series Installation Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/installation-guide/9400_9500_9600InstallationInstructions.pdf
HES 9600 Series Installation Templatehttps://dvwi9lnoau63q.cloudfront.net/hes/installation-guide/940095009600InstallationTemplate.pdf
literatureHES 9600 Series Electric Strike - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/hes/product-guide/128.1_ASSA_ABLOY_mrEPD_HES9600SeriesElectric_Strike.pdf
product-guideElectric Strike Selector Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/Electric_Strike_Selector_Guide.pdf
HES 9400, 9500, 9600 Surface Mounted Electric Strikes Videohttps://youtu.be/8VjpbNdYvUE
HES 9600 Series Overviewhttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HES9600SeriesOverview2015.pdf
HES Electric Strikes for Every Lockset Applicationhttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HES_guide_slectric-strikes.pdf
HES Electric Strikes How to Order Guidehttps://dvwi9lnoau63q.cloudfront.net/hes/product-guide/HESESHowtoOrder2015.pdf
sell-sheetHES 9600 Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/hes/sell-sheet/HES_9600_Sell-Sheet.pdf

Specifications

Brand:
HES
Manufacturer:
HES
Series:
9600 Series Electric Strikes
Parent Manufacturer:
Assa Abloy
Application:
For RIM Exit Devices having 3/4" Throw, Windstorm-Rated
Specifications Bullet 6:
1-3/4" x 9" Unit Dimension
Grade:
Grade 1
Specifications Bullet 3:
2000 lbs Static Holding Strength
Country Of Origin:
USA
Door Handing:
Non-handed
Certification:
ANSI A156.31, Grade 1, SDIA 250.13
Base Material:
Brass
Specifications Bullet 5:
Fail Safe / Fail Secure
Finish Description:
Bright Brass
Current:
240mA @ 12 VDC, 120mA @ 24 VDC Current
Specifications Bullet 4:
240mA @ 12 VDC, 120mA @ 24 VDC Current
Door Range (Thickness):
-
Dimensions:
1-3/4" x 9"
Specifications Bullet 7:
Accepts 3/4" Latch Throw
Fire Rated:
No
FS/FSE Mode:
Fail Safe / Fail Secure
Specifications Bullet 9:
5 Year Warranty
Specifications Bullet 2:
For RIM Exit Devices having 3/4" Throw, Windstorm-Rated
Latch Throw (in):
3/4"
Finish:
605/US3
Specifications Bullet 1:
12/24 VDC Voltage Electric Strike
Specifications Bullet 8:
ANSI A156.31, Grade 1, SDIA 250.13
Voltage:
12/24 VDC Voltage
Product Warranty:
5 Year Warranty
Static Holding Strength (lbs):
2000
Uid:
HAN1009600605
Url Title:
9600-605
Title:
9600-605 HES Electric Strike
Type:
Electric Strikes, Bolts, Magnets
Sub Type:
Electric Strikes
Last Modified:
2024-03-02T05:08:43+00:00
Last Pricing:
2023-04-17T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
709
Avg Lead Time:
18
Finish Family:
Polished Brass
Popularity:
3
Pack Weight:
1.7
Pack Length:
10.5
Pack Width:
3.375
Pack Height:
2.25
Pack Volume:
79.734375
Baa Qualified:
Yes
Limited Warranty:
5 Years
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
